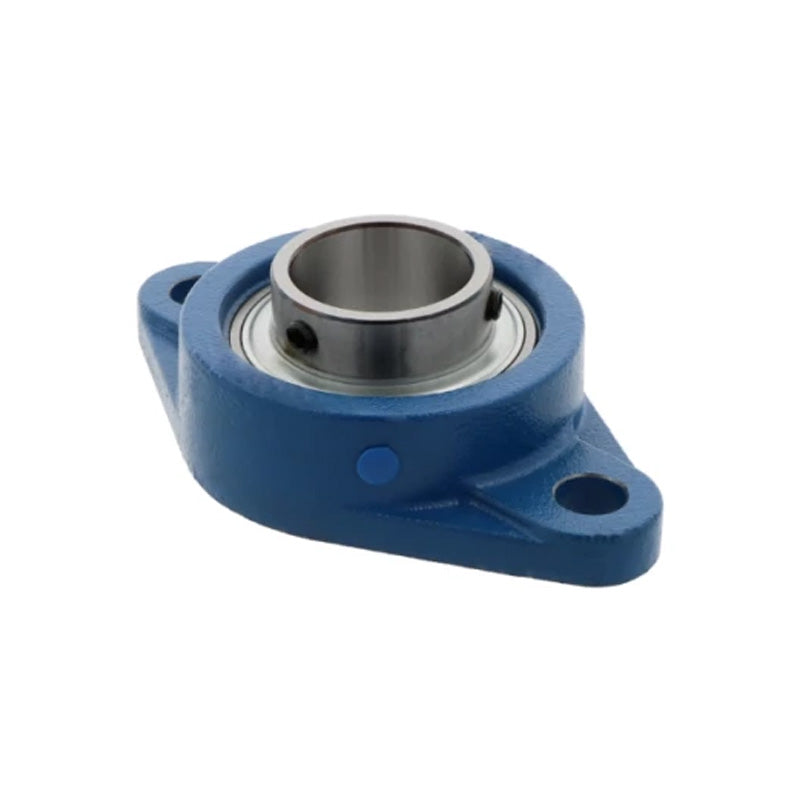

UCFL209 Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert
UCFL209 Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert
Regular price
€13,74
ex VAT
Regular price
Sale price
€13,74
ex VAT
Equivalent to: SFT45
In stock
Price Break
10+
€12,23
19+
€11,54
29+
€11,40
39+
€11,27
49+
€11,13
74+
€10,99
99+
€10,31
199+
€10,17
249+
€10,03
499+
€9,89
999+
€9,62
Couldn't load pickup availability
Share this product
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SFT45
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCFL
- Bolt Hole Centres:
- 148mm
Technical
Technical
| d | 45mm |
|---|---|
| a | 188mm |
| e | 148mm |
| i | 22mm |
| g | 15mm |
| L | 38mm |
| S | 19mm |
| b | 108mm |
| z | 52.2mm |
| B1 | 49.2mm |
| n | 19.0mm |
| Bolt Size | M16 |
| Weight | 1.786 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
