SKU: UCFL.207-21

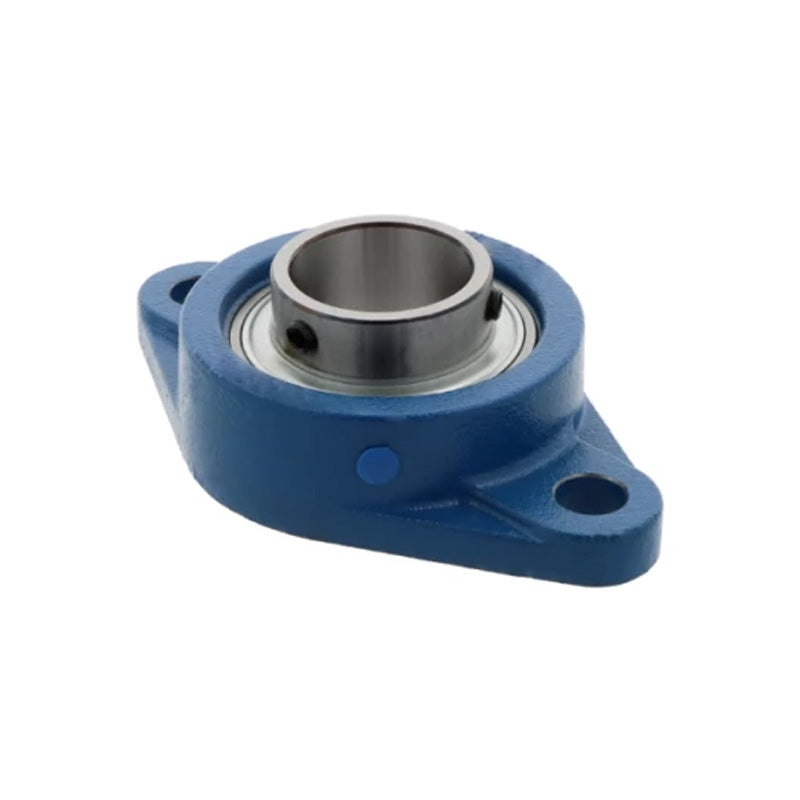

UCFL207-21 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-5/16 inch Bore Insert
UCFL207-21 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-5/16 inch Bore Insert
Regular price
€13,31
ex VAT
Regular price
Sale price
€13,31
ex VAT
Equivalent to: SFT1-5/16
In stock
Price Break
3+
€10,14
4+
€9,57
9+
€9,45
19+
€9,34
49+
€9,23
99+
€9,11
499+
€8,54
999+
€8,43
1999+
€8,31
2999+
€8,20
4999+
€7,97
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SFT1-5/16
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 1-5/16 inch |
|---|---|
| a | 161mm |
| e | 130mm |
| i | 19mm |
| g | 14mm |
| L | 34mm |
| S | 16mm |
| b | 90mm |
| z | 44.4mm |
| B1 | 42.9mm |
| n | 17.5mm |
| Bolt Size | M14 |
| Weight | 1.2 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
