SKU: UCFL.207

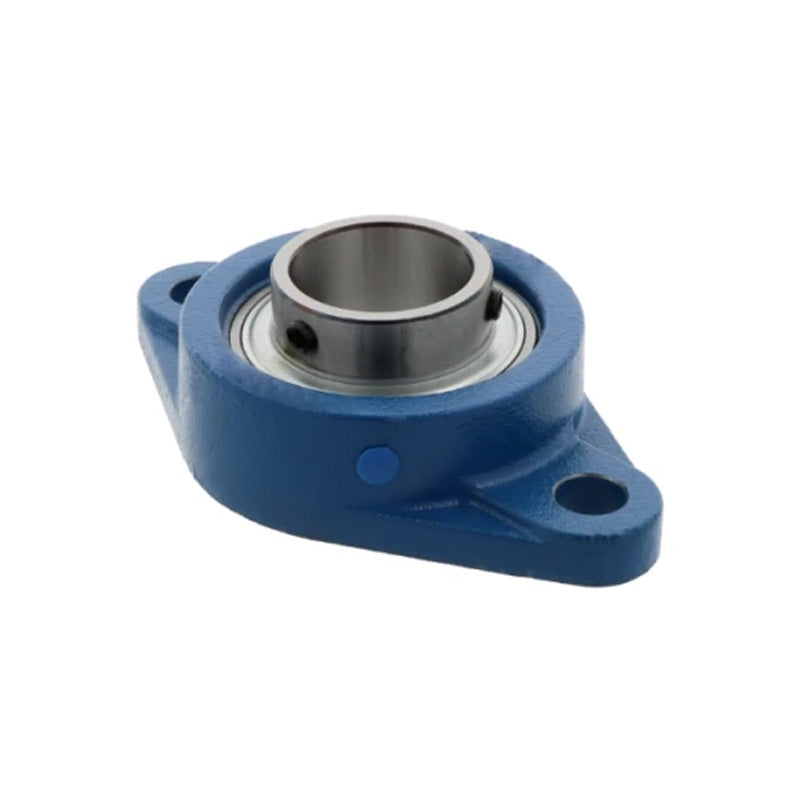

UCFL207 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert
UCFL207 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert
Regular price
€12,60
ex VAT
Regular price
Sale price
€12,60
ex VAT
Equivalent to: SFT35
In stock
Price Break
3+
€9,59
4+
€9,06
9+
€8,95
19+
€8,84
49+
€8,73
99+
€8,62
499+
€8,09
999+
€7,98
1999+
€7,87
2999+
€7,76
4999+
€7,55
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SFT35
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCFL
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 35mm |
|---|---|
| a | 161mm |
| e | 130mm |
| i | 19mm |
| g | 14mm |
| L | 34mm |
| S | 16mm |
| b | 90mm |
| z | 44.4mm |
| B1 | 42.9mm |
| n | 17.5mm |
| Bolt Size | M14 |
| Weight | 1.2 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
