SKU: UCFL.206-20

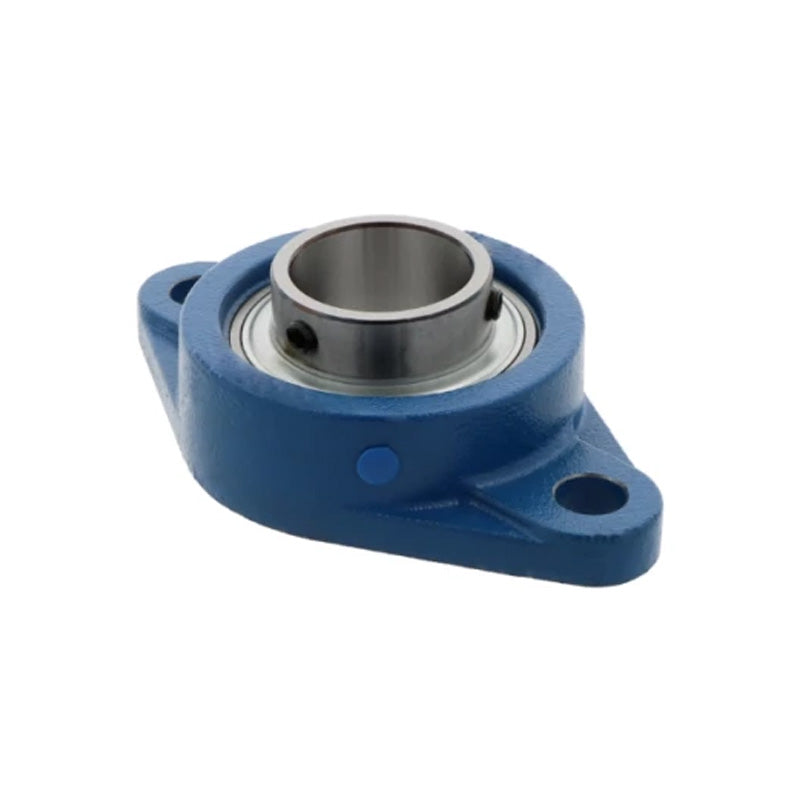

UCFL206-20 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/4 inch Bore Insert
UCFL206-20 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/4 inch Bore Insert
Regular price
€16,10
ex VAT
Regular price
Sale price
€16,10
ex VAT
In stock
Price Break
3+
€12,26
4+
€11,58
9+
€11,44
19+
€11,30
49+
€11,16
99+
€11,02
499+
€10,34
999+
€10,20
1999+
€10,06
2999+
€9,92
4999+
€9,65
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 117mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 148mm |
| e | 117mm |
| i | 18mm |
| g | 13mm |
| L | 31mm |
| S | 16mm |
| b | 80mm |
| z | 40.2mm |
| B1 | 38.1mm |
| n | 15.9mm |
| Bolt Size | M14 |
| Weight | 0.94 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
