SKU: UCFL.203

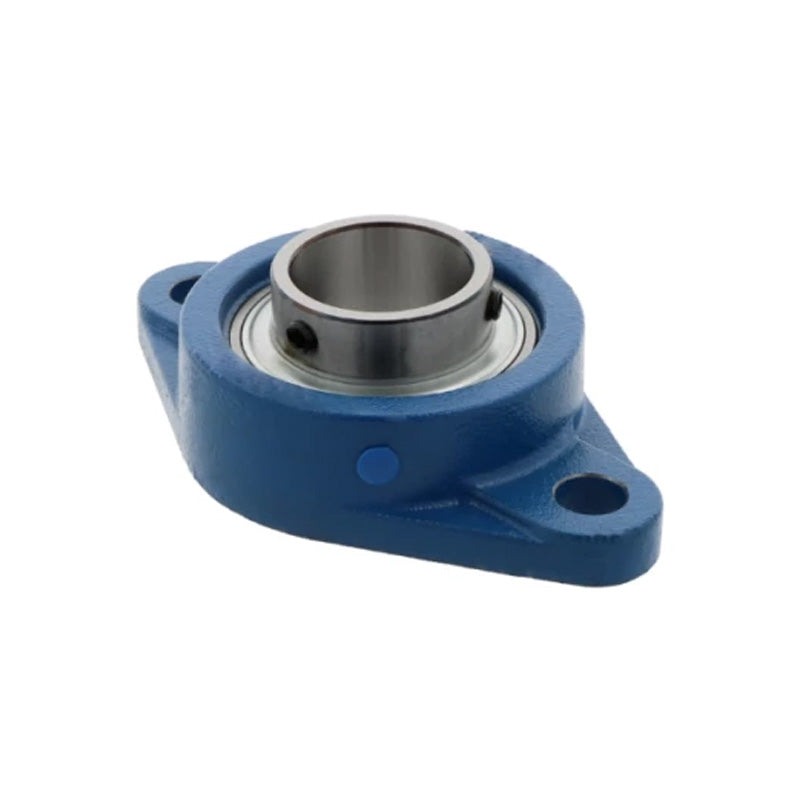

UCFL203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert
UCFL203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert
Regular price
€8,79
ex VAT
Regular price
Sale price
€8,79
ex VAT
Equivalent to: SFT17
In stock
Price Break
10+
€7,82
19+
€7,38
29+
€7,30
39+
€7,21
49+
€7,12
74+
€7,03
99+
€6,59
199+
€6,50
249+
€6,42
499+
€6,33
999+
€6,15
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SFT17
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Style:
- UCFL
- Bolt Hole Centres:
- 90mm
Technical
Technical
| d | 17mm |
|---|---|
| a | 113mm |
| e | 90mm |
| i | 15mm |
| g | 11mm |
| L | 25.5mm |
| S | 12mm |
| b | 60mm |
| z | 33.3mm |
| B1 | 31.0mm |
| n | 12.7mm |
| Bolt Size | M10 |
| Weight | 0.49 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 8800 rpm |
