SKU: UCFL.202

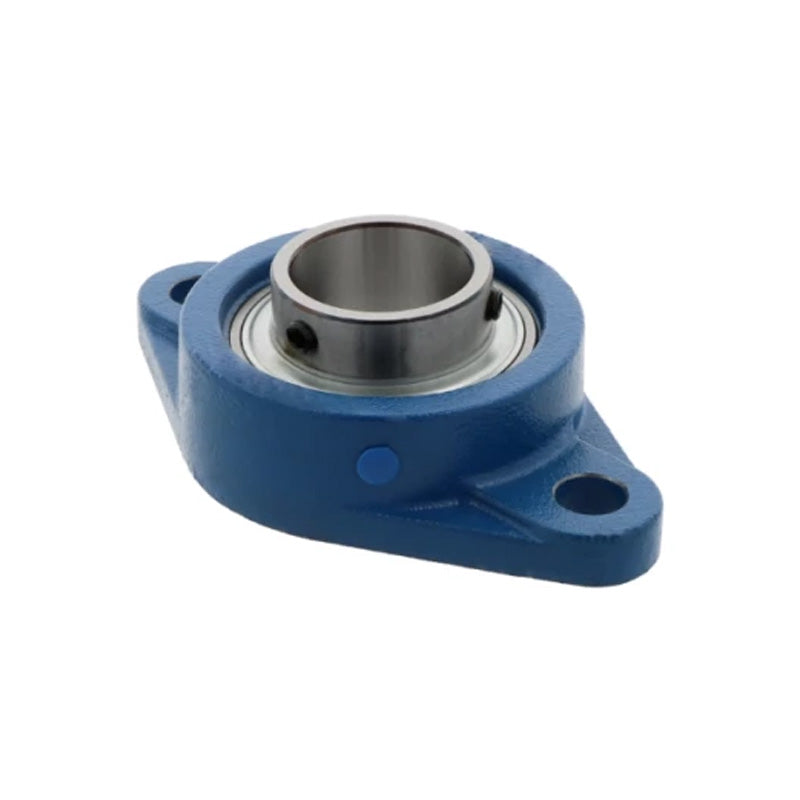

UCFL202 Metric Two Bolt Oval Cast Iron Flange Housing with 15mm Bore Insert
UCFL202 Metric Two Bolt Oval Cast Iron Flange Housing with 15mm Bore Insert
Regular price
€7,61
ex VAT
Regular price
Sale price
€7,61
ex VAT
Equivalent to: SFT15
In stock
Price Break
3+
€5,79
4+
€5,47
9+
€5,40
19+
€5,34
49+
€5,27
99+
€5,21
499+
€4,88
999+
€4,82
1999+
€4,75
2999+
€4,69
4999+
€4,56
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SFT15
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Style:
- UCFL
- Bolt Hole Centres:
- 90mm
Technical
Technical
| d | 15mm |
|---|---|
| a | 113mm |
| e | 90mm |
| i | 15mm |
| g | 11mm |
| L | 25.5mm |
| S | 12mm |
| b | 60mm |
| z | 33.3mm |
| B1 | 31.0mm |
| n | 12.7mm |
| Bolt Size | M10 |
| Weight | 0.49 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 8800 rpm |
