SKU: UCFH202D1-NTN

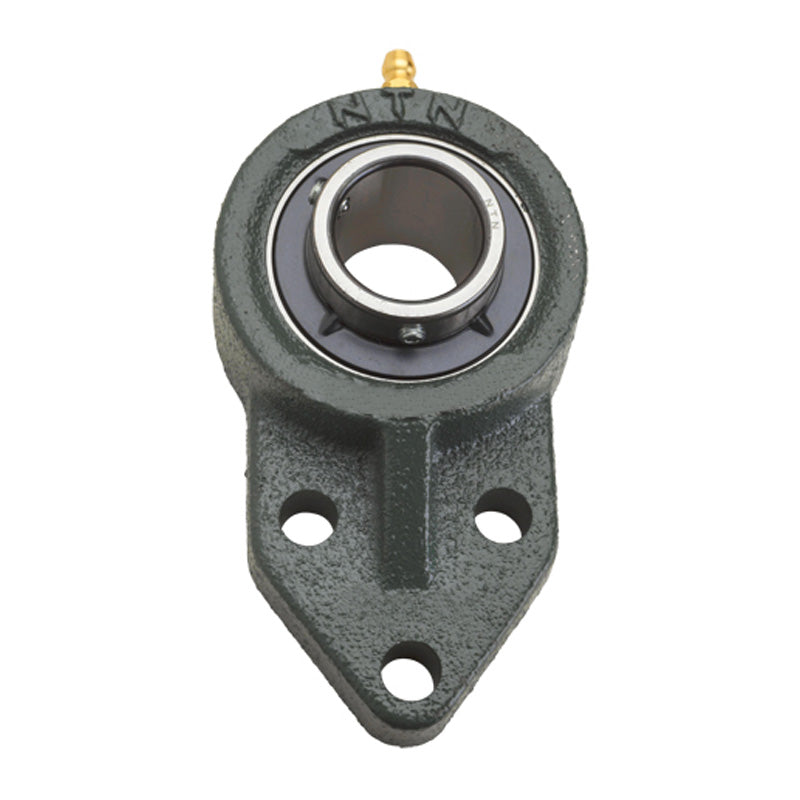

NTN UCFH202D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 15mm Bore - Allow 2-3 Days
NTN UCFH202D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 15mm Bore - Allow 2-3 Days
Regular price
€31,04
ex VAT
Regular price
Sale price
€31,04
ex VAT
In stock
Price Break
3+
€26,29
4+
€25,23
9+
€24,70
19+
€23,90
49+
€23,37
99+
€22,04
499+
€18,59
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Style:
- UCFH
- Bolt Hole Centres:
- 32mm
Technical
Technical
| Shaft diameter | 15mm |
|---|---|
| H<sub>3</sub> | 110mm |
| J | 32mm |
| A<sub>2</sub> | 15mm |
| A<sub>1</sub> | 13mm |
| A | 25.5mm |
| N | 10mm |
| H | 42mm |
| H<sub>1</sub> | 27mm |
| L<sub>1</sub> | 52mm |
| H<sub>2</sub> | 52mm |
| L | 62mm |
| A<sub>0</sub> | 33.3mm |
| B | 31mm |
| S | 12.7mm |
| Fixing bolt | M8 |
| Mass | 0.6 kg |
