SKU: UCFCX16-52

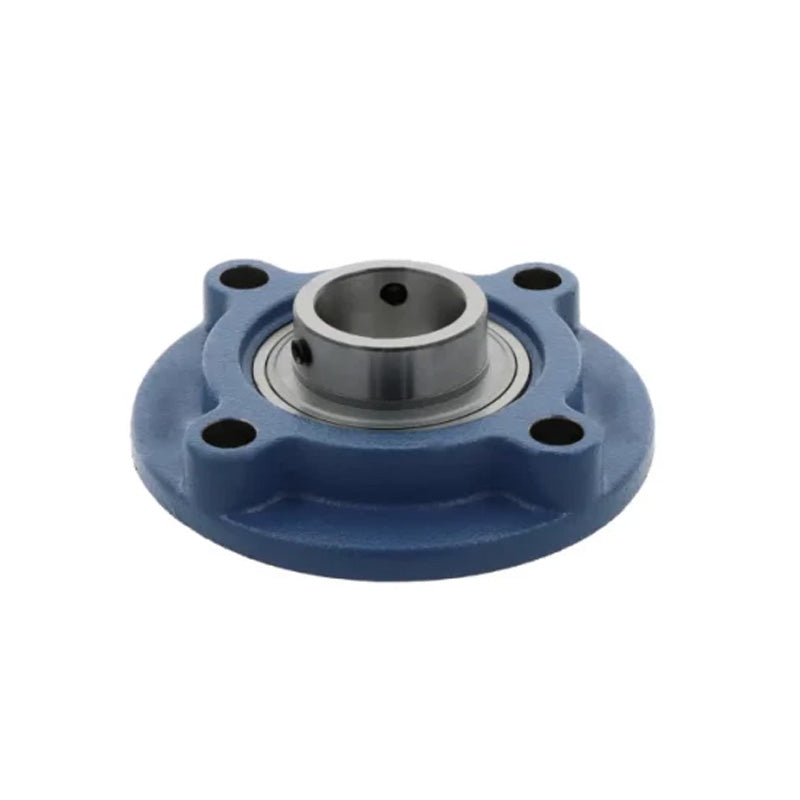

UCFCX16-52 Imperial Four Bolt Cast Iron Round Flanged Housing with 3-1/4 inch Insert
UCFCX16-52 Imperial Four Bolt Cast Iron Round Flanged Housing with 3-1/4 inch Insert
Regular price
€271,15
ex VAT
Regular price
Sale price
€271,15
ex VAT
In stock
Price Break
10+
€241,32
19+
€227,77
29+
€225,05
39+
€222,34
49+
€219,63
74+
€216,92
99+
€203,36
199+
€200,65
249+
€197,94
499+
€195,23
999+
€189,81
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Style:
- UCFCX
- Pitch Circle Diameter:
- 154.78mm = 6.094 (6-3/32) inch
Technical
Technical
| d | 3-1/4 inch |
|---|---|
| a | 10-1/4 inch |
| p | 8-5/8 inch |
| (e) | 6-3/32 inch |
| i | 25/64 inch |
| s | 29/32 inch |
| j | 63/64 inch |
| k | 3/4 inch |
| g | 1-13/32 inch |
| f | 7.3228 inch |
| z | 2-7/16 inch |
| B | 3.374 inch |
| n | 1.343 inch |
| Bolt size | 3/4 inch |
| Bearing no | UCX16-52 |
| Housing no | FCX16 |
| Weight | 10 kg |
