SKU: UCFCX16

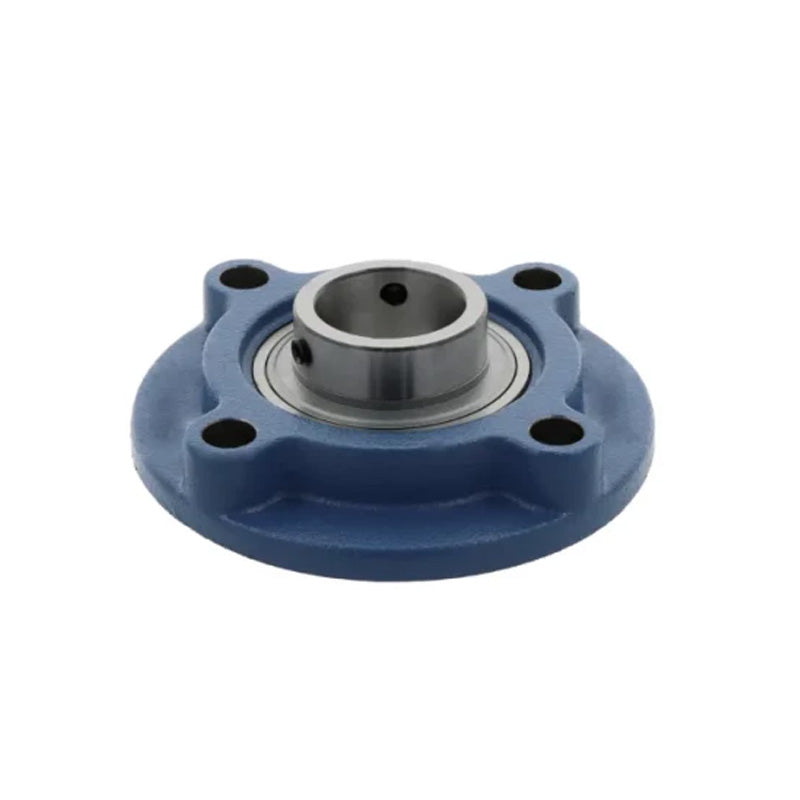

UCFCX16 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Insert
UCFCX16 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Insert
Regular price
€145,51
ex VAT
Regular price
Sale price
€145,51
ex VAT
In stock
Price Break
10+
€129,50
19+
€122,23
29+
€120,77
39+
€119,32
49+
€117,86
74+
€116,41
99+
€109,13
199+
€107,68
249+
€106,22
499+
€104,77
999+
€101,86
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 154.8mm
Technical
Technical
| d | 80mm |
|---|---|
| a | 260mm |
| p | 219mm |
| (e) | 154.8mm |
| i | 10mm |
| s | 23mm |
| j | 25mm |
| k | 19mm |
| g | 36mm |
| f | 186mm |
| z | 61.6mm |
| B | 85.7mm |
| n | 34.1mm |
| Bolt size | M20 |
| Bearing no | UCX16 |
| Housing no | FCX16 |
| Weight | 10 kg |
