SKU: UCFCX06-19

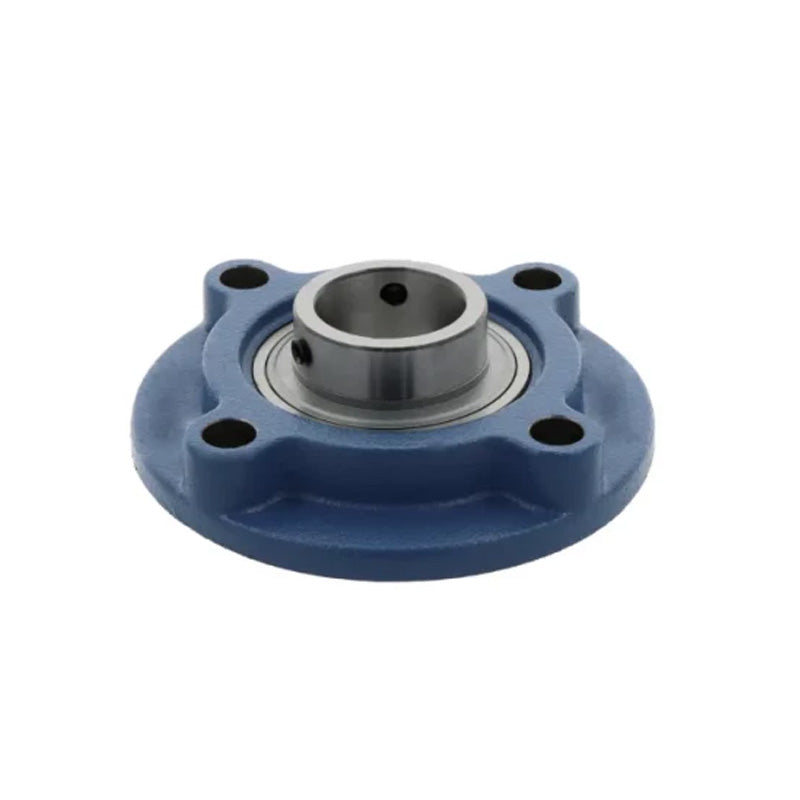

UCFCX06-19 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-3/16 inch Insert
UCFCX06-19 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-3/16 inch Insert
Regular price
€40,45
ex VAT
Regular price
Sale price
€40,45
ex VAT
In stock
Price Break
10+
€36,00
19+
€33,98
29+
€33,57
39+
€33,17
49+
€32,76
74+
€32,36
99+
€30,34
199+
€29,93
249+
€29,53
499+
€29,12
999+
€28,32
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- UCFCX
- Pitch Circle Diameter:
- 74.22mm = 2.922 (2-59/64) inch
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| a | 5 inch |
| p | 4-9/64 inch |
| (e) | 2-59/64 inch |
| i | 5/16 inch |
| s | 15/32 inch |
| j | 3/8 inch |
| k | 3/8 inch |
| g | 7/8 inch |
| f | 3.3465 inch |
| z | 1-5/16 inch |
| B | 1.689 inch |
| n | 0.689 inch |
| Bolt size | 3/8 inch |
| Bearing no | UCX06-19 |
| Housing no | FCX06 |
| Weight | 1.4 kg |
