SKU: UCFC215-48-SNR

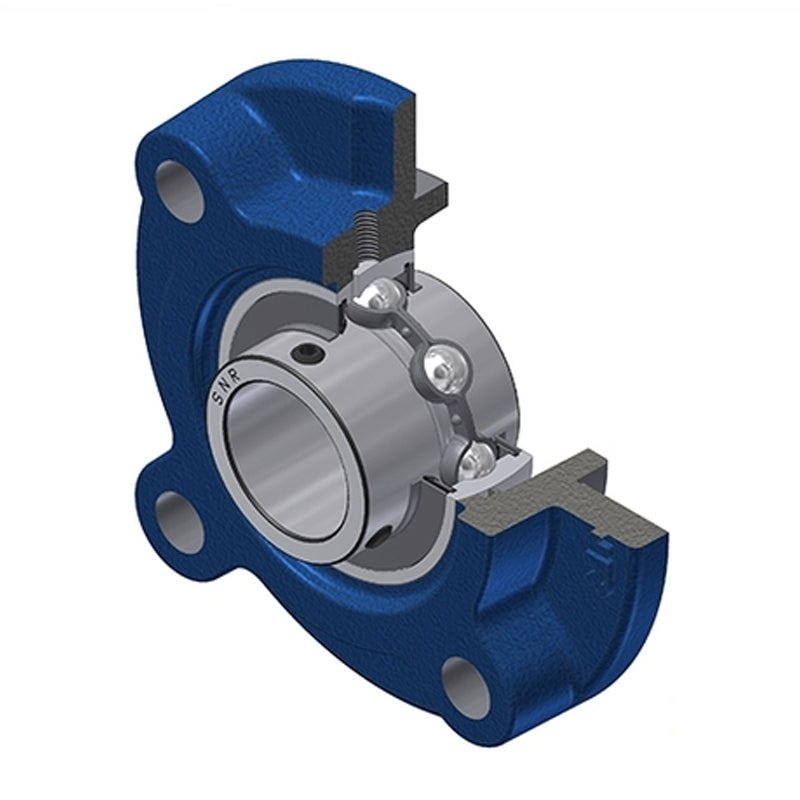

SNR UCFC215-48 Imperial Four Bolt Cast Iron Round Flanged Housing with 3 inch Insert - Allow 2-3 Days
SNR UCFC215-48 Imperial Four Bolt Cast Iron Round Flanged Housing with 3 inch Insert - Allow 2-3 Days
Regular price
€258,91
ex VAT
Regular price
Sale price
€258,91
ex VAT
In stock
Price Break
3+
€219,34
4+
€210,48
9+
€206,05
19+
€199,40
49+
€194,97
99+
€183,89
499+
€155,09
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 76.2mm = 3 Inch
- Style:
- UCFC
- Pitch Circle Diameter:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 3 inch |
| A | 55mm |
| A1 | 17mm |
| A2 | 62.5mm |
| A4 | 39mm |
| B | 77.8mm |
| e | 18mm |
| H3 | 160mm |
| J | 184mm |
| L | 220mm |
| N | 19mm |
| S | 33.3mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 27.1 Nm |
| Mass | 7 kg |
