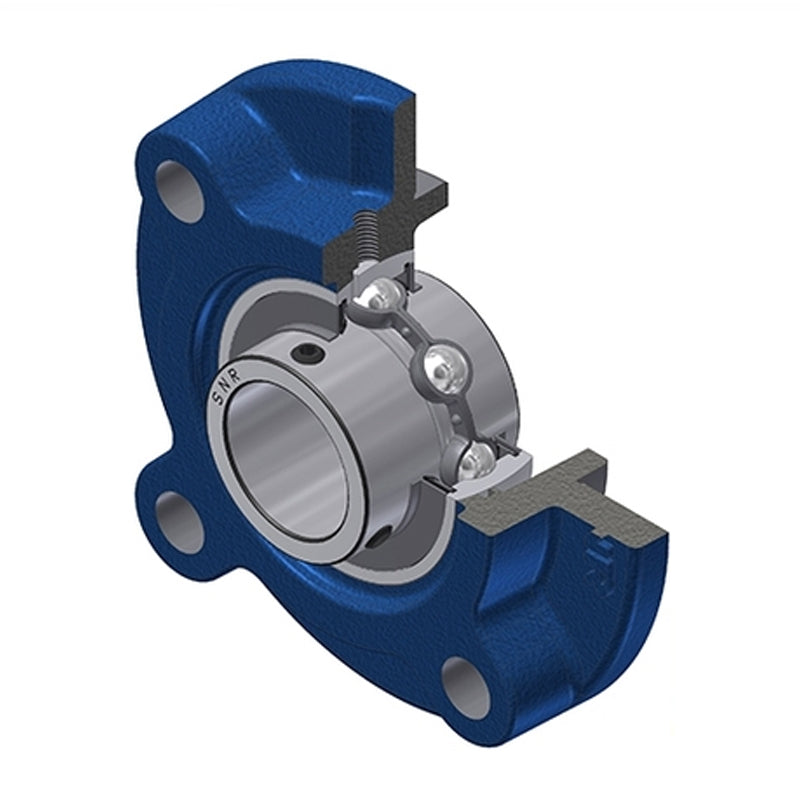

SNR UCFC210-30 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-7/8 inch Insert - Allow 2-3 Days
SNR UCFC210-30 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-7/8 inch Insert - Allow 2-3 Days
Regular price
€77,65
ex VAT
Regular price
Sale price
€77,65
ex VAT
In stock
Price Break
3+
€65,79
4+
€63,13
9+
€61,80
19+
€59,81
49+
€58,48
99+
€55,15
499+
€46,52
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Style:
- UCFC
- Pitch Circle Diameter:
- 138mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-7/8 inch |
| A | 40mm |
| A1 | 14mm |
| A2 | 42.6mm |
| A4 | 28mm |
| B | 51.6mm |
| e | 10mm |
| H3 | 110mm |
| J | 138mm |
| L | 165mm |
| N | 16mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 2.91 kg |
