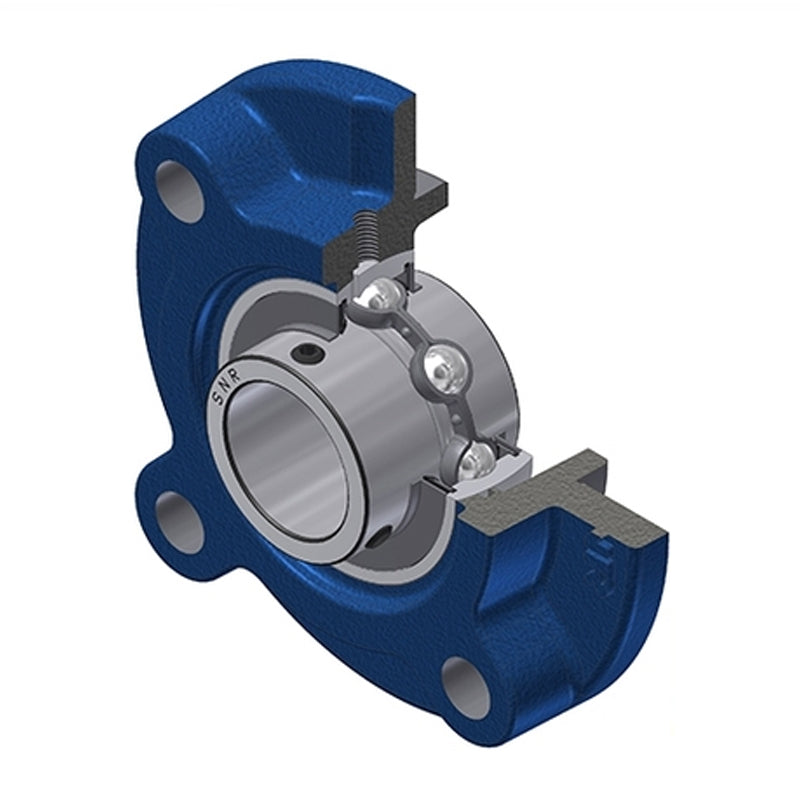

SNR UCFC205N Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert - Allow 2-3 Days
SNR UCFC205N Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert - Allow 2-3 Days
Regular price
€36,25
ex VAT
Regular price
Sale price
€36,25
ex VAT
In stock
Price Break
3+
€30,71
4+
€29,47
9+
€28,85
19+
€27,92
49+
€27,30
99+
€25,75
499+
€21,71
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 90mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 27mm |
| A1 | 7mm |
| A2 | 29.7mm |
| A4 | 21mm |
| B | 34mm |
| e | 10mm |
| H3 | 70mm |
| J | 90mm |
| L | 115mm |
| N | 12mm |
| S | 14.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.96 kg |
