SKU: UCFC.213.TS.CHAL

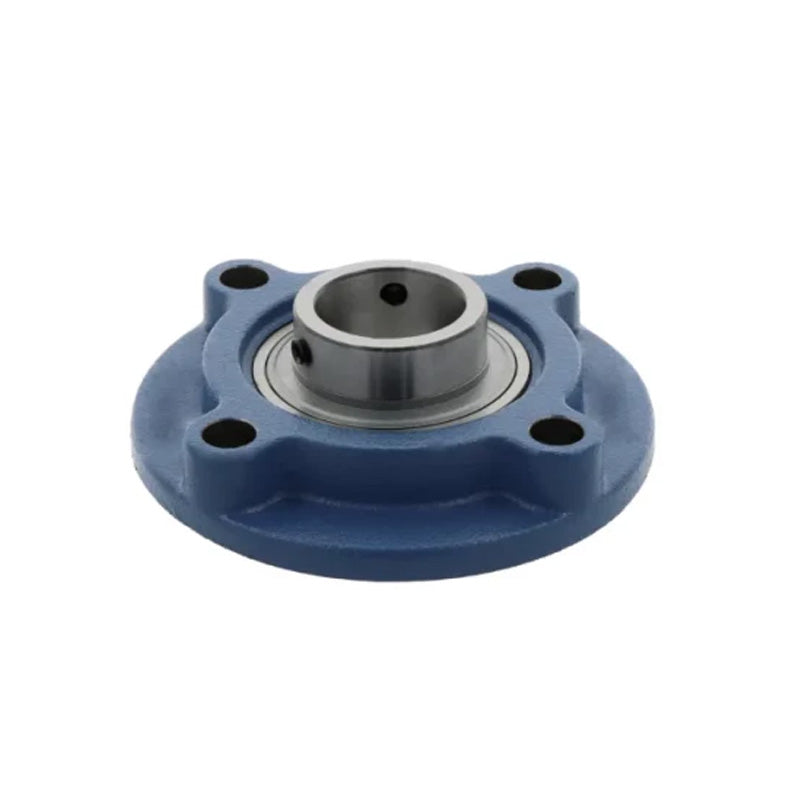

Challenge / FK UCFC213 Metric Cast Iron Four Bolt Round Flanged Housing with 65mm Bore 205mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Equivalent to: UCFC.213
Low stock
Price Break
Couldn't load pickup availability
Share this product
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFC.213
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 65mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 170mm
Technical
| Shaft Diameter d | 65mm |
|---|---|
| a | 205mm |
| p | 170mm |
| e | 120.2mm |
| i | 16mm |
| g | 36mm |
| l | 50mm |
| s | 19 inch |
| j | 14mm |
| k | 15mm |
| f | 145mm |
| z | 55.7mm |
| Bi | 65.1mm |
| n | 25.4mm |
| Bolt Size | M16mm |
| Insert No | UC213 |
| Housing No | FC213 |
