SKU: UCFC.206

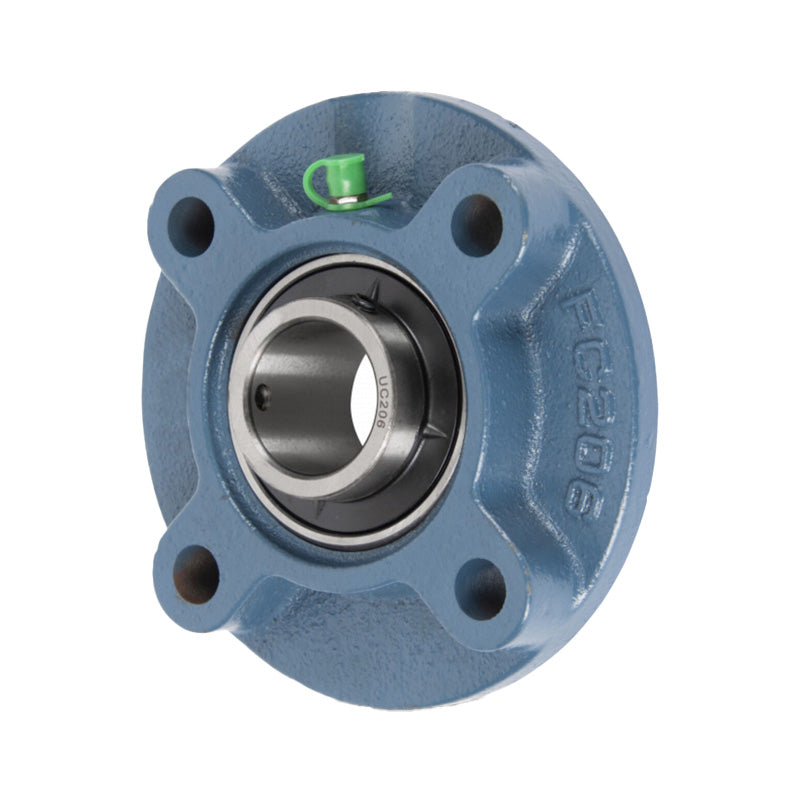

UCFC206 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert
UCFC206 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert
Regular price
€18,86
ex VAT
Regular price
Sale price
€18,86
ex VAT
In stock
Price Break
3+
€14,36
4+
€13,55
9+
€13,39
19+
€13,23
49+
€13,07
99+
€12,91
499+
€12,10
999+
€11,94
1999+
€11,78
2999+
€11,62
4999+
€11,30
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 100mm
Technical
Technical
| d | 30mm |
|---|---|
| a | 125mm |
| P | 100mm |
| e | 70.7mm |
| i | 10mm |
| L | 31mm |
| s | 12mm |
| j | 8mm |
| k | 8mm |
| g | 23mm |
| f | 80mm |
| z | 32.2mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt Size | M10 |
| Weight | 1.4 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
