SKU: UCFC.205.TS.CHAL

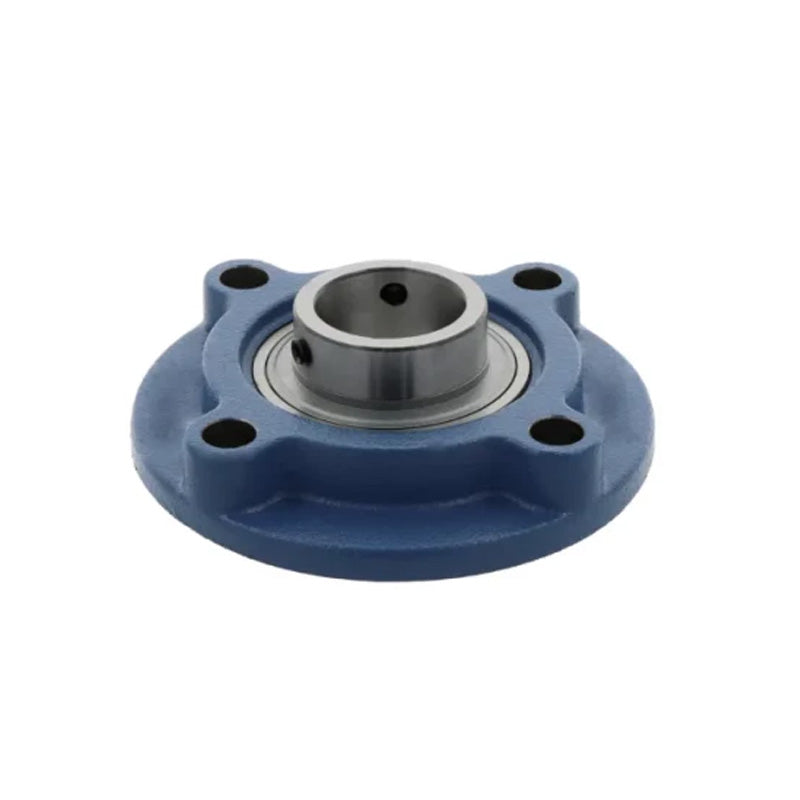

Challenge / FK UCFC205 Metric Cast Iron Four Bolt Round Flanged Housing with 25mm Bore 115mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFC205 Metric Cast Iron Four Bolt Round Flanged Housing with 25mm Bore 115mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€33,23
ex VAT
Regular price
Sale price
€33,23
ex VAT
Equivalent to: UCFC.205
In stock
Price Break
10+
€29,57
19+
€27,91
29+
€27,58
39+
€27,25
49+
€26,92
74+
€26,58
99+
€24,92
199+
€24,59
249+
€24,26
499+
€23,93
999+
€23,26
Couldn't load pickup availability
Description
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFC.205
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 25mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 90mm
Technical
Technical
| Shaft Diameter d | 25mm |
|---|---|
| a | 115mm |
| p | 90mm |
| e | 63.6mm |
| i | 10mm |
| g | 21mm |
| l | 27mm |
| s | 12mm |
| j | 6mm |
| k | 7mm |
| f | 70mm |
| z | 29.7mm |
| Bi | 34mm |
| n | 14.3mm |
| Bolt Size | M10mm |
| Insert No | UC205 |
| Housing No | FC205 |
