SKU: UCFC.203-11

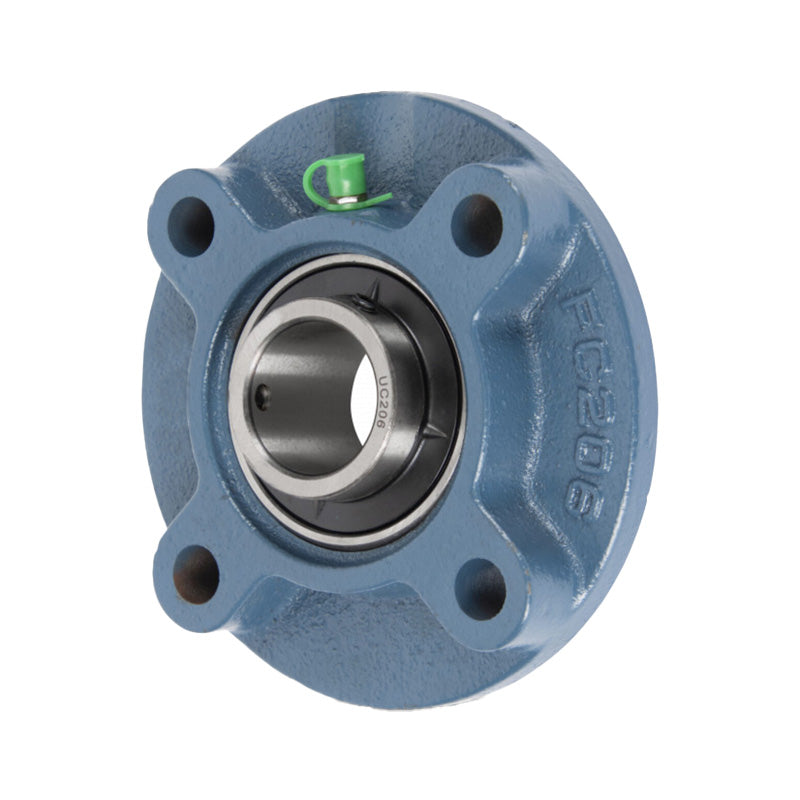

UCFC203-11 Imperial Four Bolt Cast Iron Round Flanged Housing with 11/16 inch Insert
UCFC203-11 Imperial Four Bolt Cast Iron Round Flanged Housing with 11/16 inch Insert
Regular price
€10,83
ex VAT
Regular price
Sale price
€10,83
ex VAT
In stock
Price Break
3+
€8,25
4+
€7,79
9+
€7,69
19+
€7,60
49+
€7,51
99+
€7,42
499+
€6,95
999+
€6,86
1999+
€6,77
2999+
€6,67
4999+
€6,49
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Style:
- UCFC
- Pitch Circle Diameter:
- 78.18mm = 78.18 (3-5/64) inch
Technical
Technical
| d | 11/16 inch |
|---|---|
| a | 3-15/16 inch |
| P | 3-5/64 inch |
| e | 2-11/64 inch |
| i | 25/64 inch |
| L | 1 inch |
| s | 15/32 inch |
| j | 13/64 inch |
| k | 9/32 inch |
| g | 13/16 inch |
| f | 2.4409 inch |
| z | 1-1/8 inch |
| Bi | 1.2205 inch |
| n | 0.500 inch |
| Bolt Size | 3/8 inch |
| Weight | 0.78 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
