SKU: UCFA208N-SNR

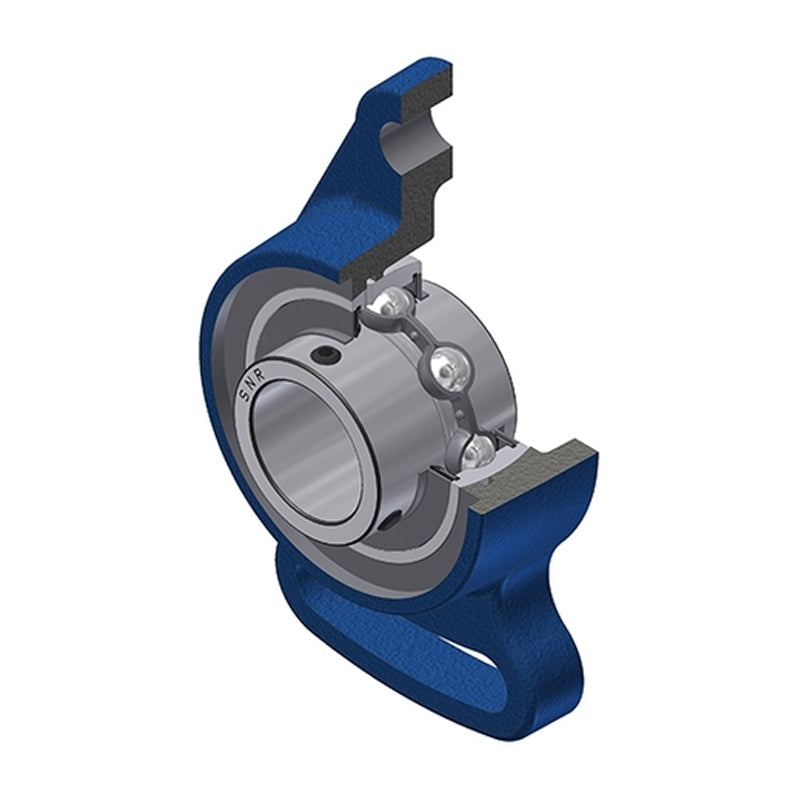

SNR UCFA208N Metric Cast Iron Adjustable Flange Unit with 40mm Insert - Allow 2-3 Days

SNR UCFA208N Metric Cast Iron Adjustable Flange Unit with 40mm Insert - Allow 2-3 Days
Regular price €64,75 ex VAT
Regular price Sale price €64,75 ex VAT
Sale Sold out

In stock

Price Break
3+ €54,86
4+ €52,64
9+ €51,53
19+ €49,87
49+ €48,76
99+ €45,99
499+ €38,79
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 36mm
A1 16mm
A2 51.2mm
B 49.2mm
e 21mm
H 175mm
J 144mm
J1 71mm
L 100mm
L1 87mm
N 15mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.64 kg
