SKU: UCF319D1-NTN

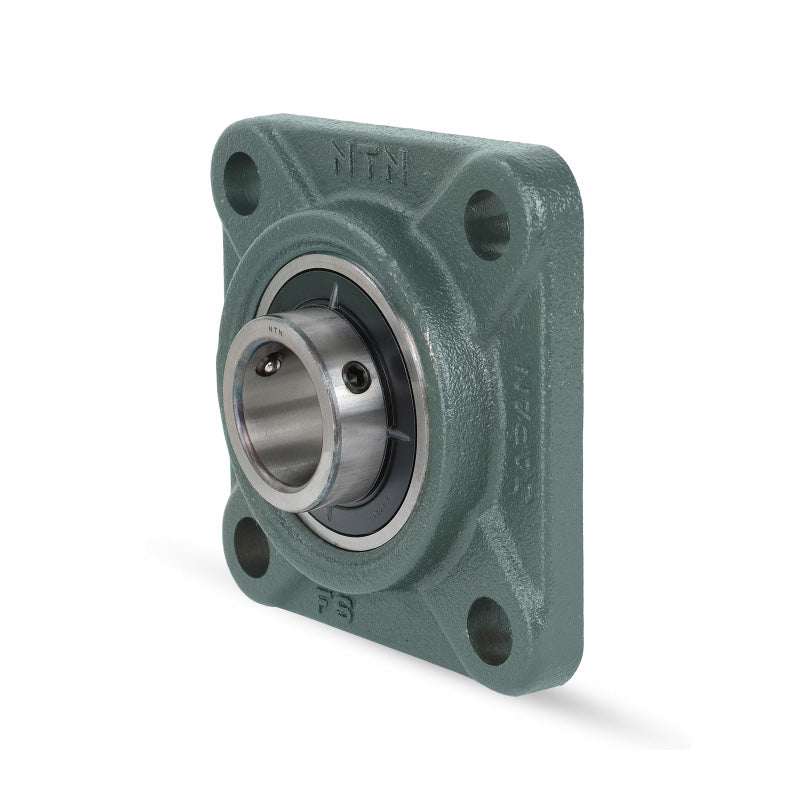

NTN UCF319D1 Metric Four Bolt Square Cast Iron Flange Housing with 95mm Bore Insert - Allow 2-3 Days
NTN UCF319D1 Metric Four Bolt Square Cast Iron Flange Housing with 95mm Bore Insert - Allow 2-3 Days
Regular price
€582,81
ex VAT
Regular price
Sale price
€582,81
ex VAT
In stock
Price Break
3+
€493,74
4+
€473,79
9+
€463,82
19+
€448,86
49+
€438,88
99+
€413,95
499+
€349,11
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 95mm
- Style:
- UCF
- Bolt Hole Centres:
- 228mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 95mm |
| L | 290mm |
| J | 228mm |
| A<sub>2</sub> | 59mm |
| A<sub>1</sub> | 30mm |
| A | 94mm |
| N | 35mm |
| A<sub>0</sub> | 121mm |
| B | 103mm |
| S | 41mm |
| Fixing bolt | M30 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 169 kN |
| Static load C<sub>0r</sub> | 119 kN |
| Fatigue load limit C<sub>u</sub> | 7.65 kN |
| --- | Unit information |
| Mass | 22 kg |
