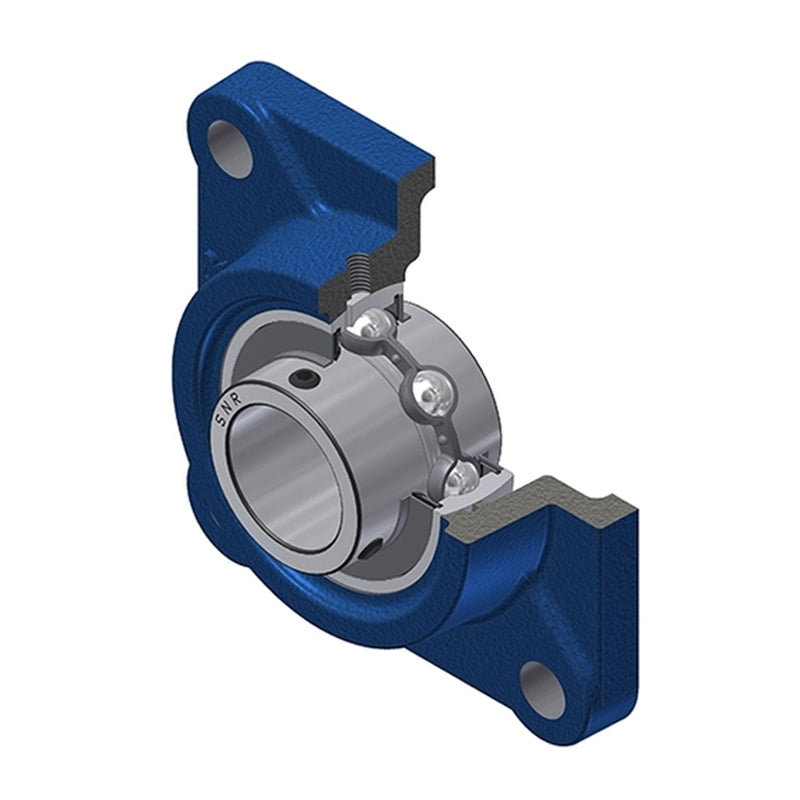

SNR UCF312-39 Imperial Four Bolt Square Cast Iron Flange Housing with 2-7/16 inch Bore Insert - Allow 2-3 Days
SNR UCF312-39 Imperial Four Bolt Square Cast Iron Flange Housing with 2-7/16 inch Bore Insert - Allow 2-3 Days
Regular price
€207,19
ex VAT
Regular price
Sale price
€207,19
ex VAT
In stock
Price Break
3+
€175,53
4+
€168,44
9+
€164,89
19+
€159,57
49+
€156,02
99+
€147,16
499+
€124,11
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- UCF
- Bolt Hole Centres:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2-7/16 inch |
| A | 56mm |
| A1 | 22mm |
| A2 | 78mm |
| B | 71mm |
| e | 33mm |
| J | 150mm |
| L | 193mm |
| N | 23mm |
| S | 26mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 81.6 kN |
| Static load C0 | 51.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 27.1 Nm |
| Mass | 6.23 kg |
