SKU: UCF214T04-SNR

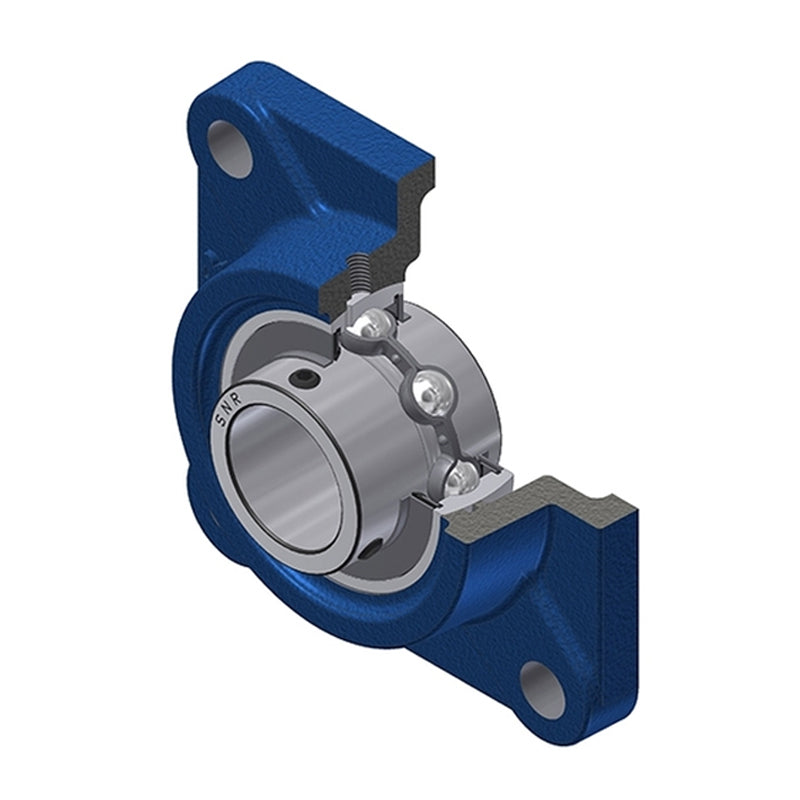

SNR UCF214T04 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert Low Temperature Version - Allow 2-3 Days
SNR UCF214T04 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert Low Temperature Version - Allow 2-3 Days
Regular price
€362,64
ex VAT
Regular price
Sale price
€362,64
ex VAT
In stock
Price Break
3+
€307,22
4+
€294,80
9+
€288,60
19+
€279,29
49+
€273,08
99+
€257,57
499+
€217,22
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCF
- Bolt Hole Centres:
- 152mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 70mm |
| A | 54mm |
| A1 | 22mm |
| A2 | 75.4mm |
| B | 74.6mm |
| e | 31mm |
| J | 152mm |
| L | 193mm |
| N | 19mm |
| S | 30.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 45 kN |
| --- | Unit information |
| Operating temperature min. | -40°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 6.21 kg |
