SKU: UCF210-200D1-NTN

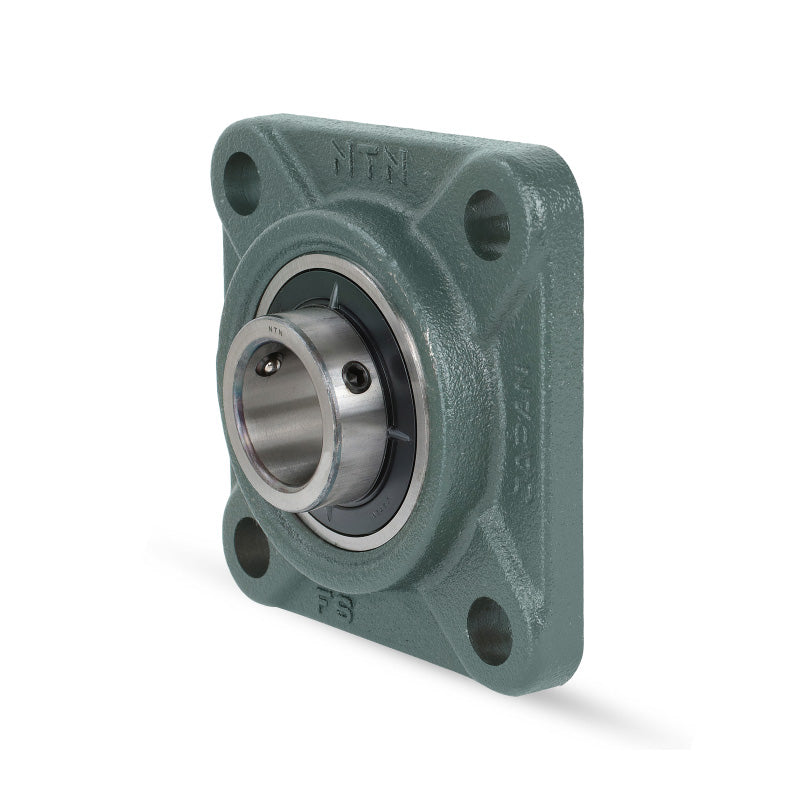

NTN UCF210-200D1 Imperial Four Bolt Square Cast Iron Flange Housing with 2 inch Bore Insert - Allow 2-3 Days
NTN UCF210-200D1 Imperial Four Bolt Square Cast Iron Flange Housing with 2 inch Bore Insert - Allow 2-3 Days
Regular price
€77,69
ex VAT
Regular price
Sale price
€77,69
ex VAT
In stock
Price Break
3+
€65,82
4+
€63,16
9+
€61,83
19+
€59,83
49+
€58,50
99+
€55,18
499+
€46,54
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50.8mm = 2 Inch
- Style:
- UCF
- Bolt Hole Centres:
- 4-3/8 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2 inch |
| L | 5-5/8 inch |
| J | 4-3/8 inch |
| A<sub>2</sub> | 55/64 inch |
| A<sub>1</sub> | 5/8 inch |
| A | 1-9/16 inch |
| N | 5/8 inch |
| A<sub>0</sub> | 2-5/32 inch |
| B | 2.0315 inch |
| S | 0.748 inch |
| Fixing bolt | 1/2 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 39 kN |
| Static load C<sub>0r</sub> | 23.2 kN |
| Fatigue load limit C<sub>u</sub> | 1.82 kN |
| --- | Unit information |
| Mass | 5.5 lbs |
