SKU: UCF208-25N-SNR

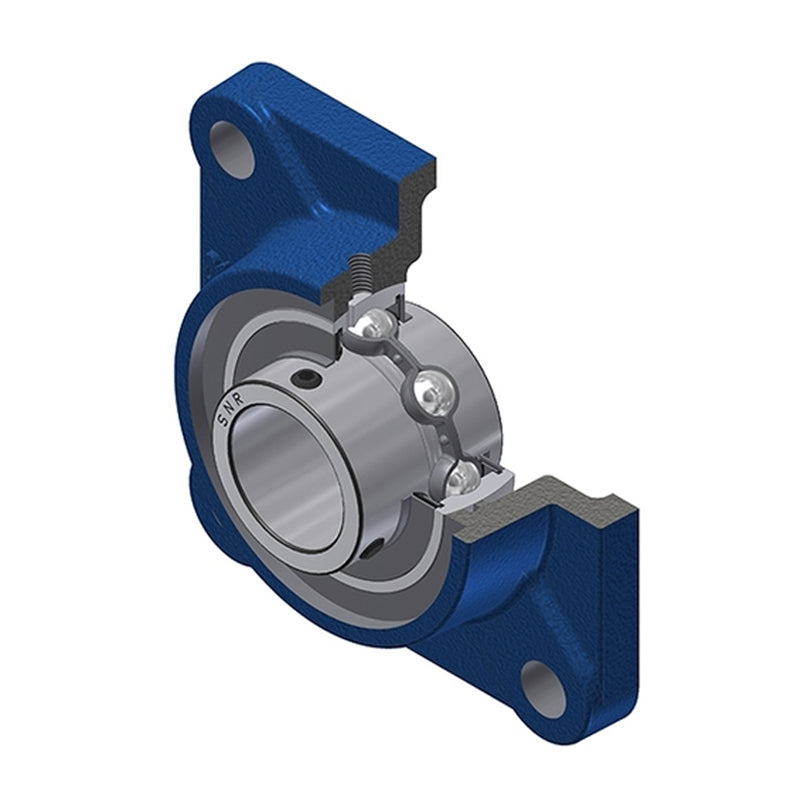

SNR UCF208-25N Imperial Four Bolt Square Cast Iron Flange Housing with 1-9/16 inch Bore Insert - Allow 2-3 Days
SNR UCF208-25N Imperial Four Bolt Square Cast Iron Flange Housing with 1-9/16 inch Bore Insert - Allow 2-3 Days
Regular price
€51,78
ex VAT
Regular price
Sale price
€51,78
ex VAT
In stock
Price Break
3+
€43,87
4+
€42,09
9+
€41,21
19+
€39,88
49+
€38,99
99+
€36,78
499+
€31,02
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Style:
- UCF
- Bolt Hole Centres:
- 102mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-9/16 inch |
| A | 36mm |
| A1 | 15mm |
| A2 | 51.2mm |
| B | 49.2mm |
| e | 21mm |
| J | 102mm |
| L | 130mm |
| N | 16mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 1.9 kg |
