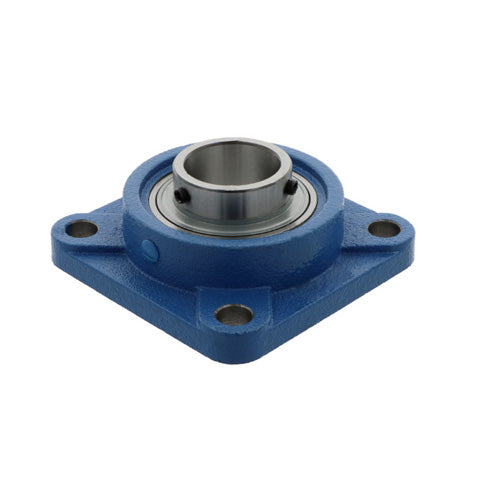

UCF217-52 Imperial Four Bolt Square Cast Iron Flange Housing with 3-1/4 inch Bore Insert
UCF217-52 Imperial Four Bolt Square Cast Iron Flange Housing with 3-1/4 inch Bore Insert
Regular price
€328,62
ex VAT
Regular price
Sale price
€328,62
ex VAT
In stock
Price Break
3+
€250,28
4+
€236,22
9+
€233,41
19+
€230,60
49+
€227,78
99+
€224,97
499+
€210,91
999+
€208,10
1999+
€205,29
2999+
€202,47
4999+
€196,85
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Style:
- UCF
- Bolt Hole Centres:
- 175mm
Technical
Technical
| d | 3-1/4 inch |
|---|---|
| a | 220mm |
| e | 175mm |
| i | 36mm |
| g | 26mm |
| L | 63mm |
| S | 23mm |
| Z | 87.6mm |
| Bi | 85.7mm |
| n | 34.1mm |
| Bolt Size | M20 |
| Weight | 9.1 kg |
| Dynamic load | 6600 kgf |
| Static load | 5320 kgf |
