SKU: UCF.215

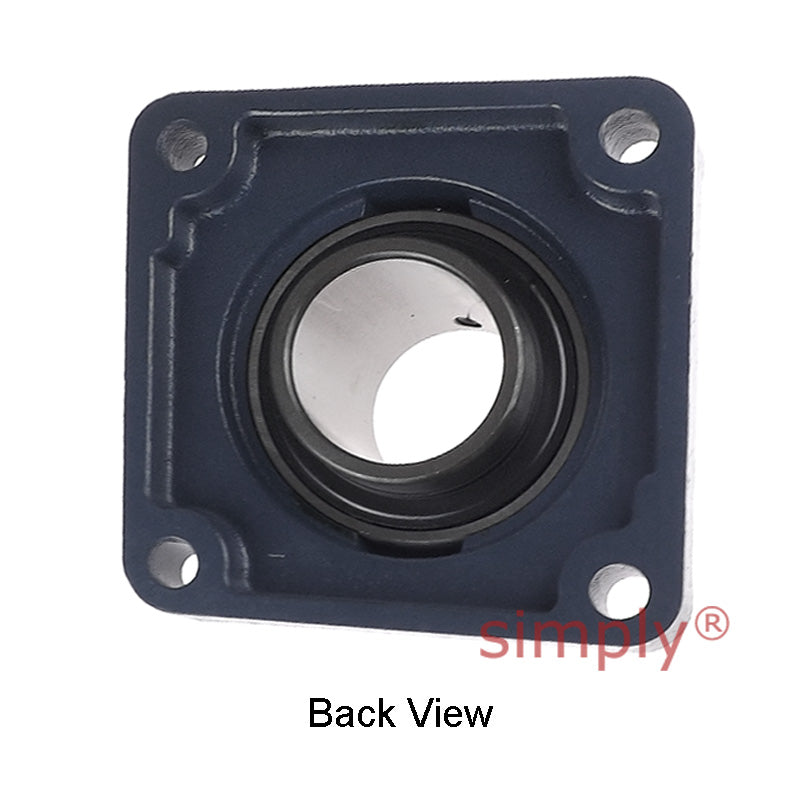

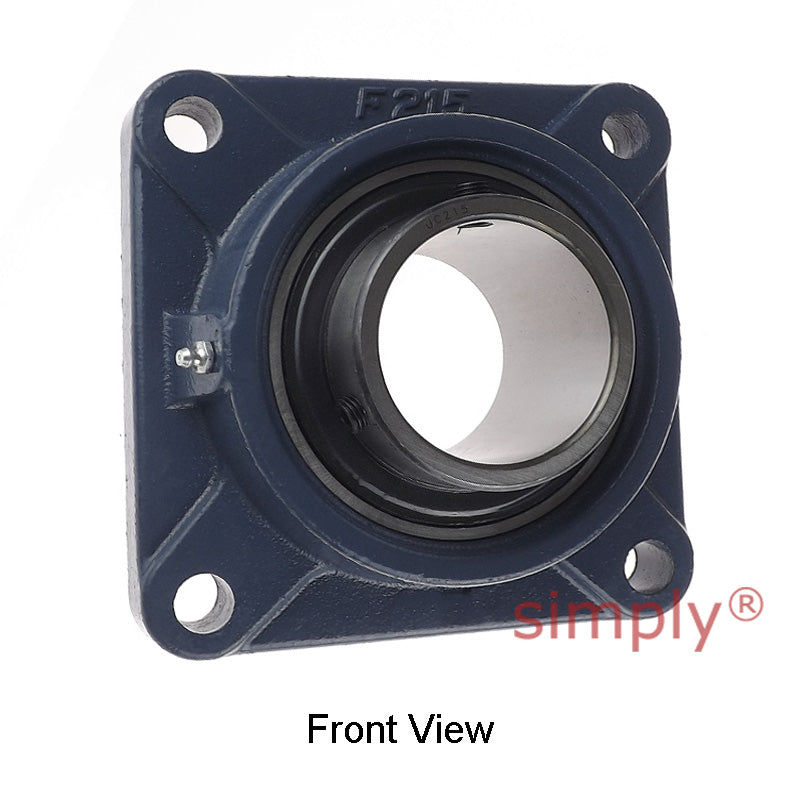

UCF215 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert
UCF215 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert
Regular price
€42,98
ex VAT
Regular price
Sale price
€42,98
ex VAT
Equivalent to: SF75
In stock
Price Break
3+
€32,73
4+
€30,90
9+
€30,53
19+
€30,16
49+
€29,79
99+
€29,42
499+
€27,59
999+
€27,22
1999+
€26,85
2999+
€26,48
4999+
€25,75
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SF75
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- UCF
- Bolt Hole Centres:
- 159mm
Technical
Technical
| d | 75mm |
|---|---|
| a | 200mm |
| e | 159mm |
| i | 35mm |
| g | 24mm |
| L | 54mm |
| S | 19mm |
| Z | 75.4mm |
| Bi | 74.6mm |
| n | 30.2mm |
| Bolt Size | 16mm |
| Weight | 6.6 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
| Rec max speed | 2300 rpm |
