SKU: UCC206-18

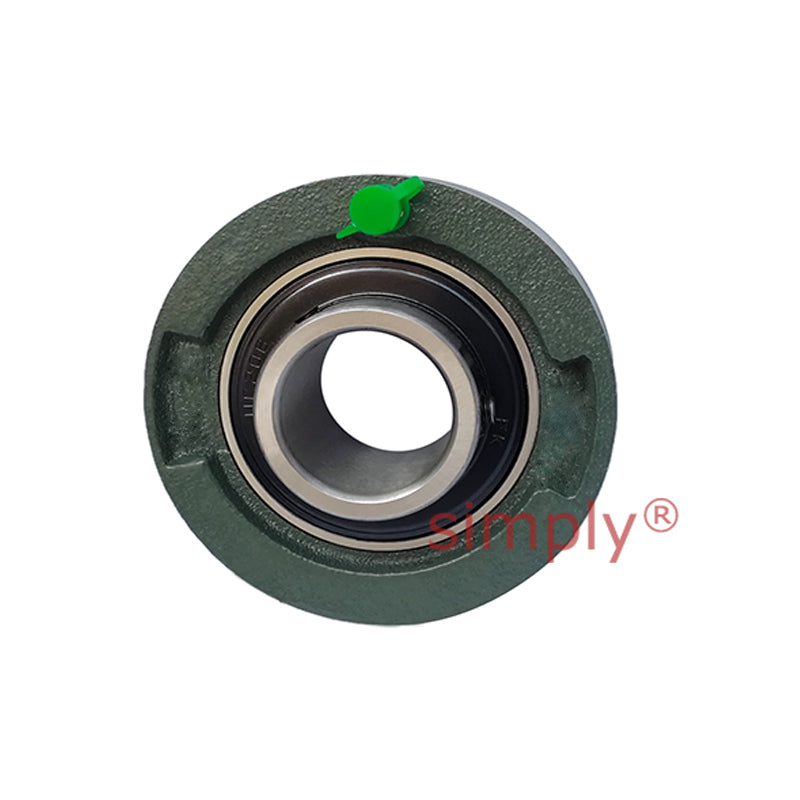

UCC206-18 Imperial Cast Iron Normal Duty Cartridge Unit with 1-1/8 inch Bore Insert 3.3465 inch Outside Dia
UCC206-18 Imperial Cast Iron Normal Duty Cartridge Unit with 1-1/8 inch Bore Insert 3.3465 inch Outside Dia
Regular price
€26,06
ex VAT
Regular price
Sale price
€26,06
ex VAT
In stock
Price Break
10+
€23,19
19+
€21,89
29+
€21,63
39+
€21,37
49+
€21,11
74+
€20,85
99+
€19,55
199+
€19,28
249+
€19,02
499+
€18,76
999+
€18,24
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 85.001mm = 3.3465 inch
- Style:
- UCC
Technical
Technical
| Bore d | 1-1/8 inch |
|---|---|
| Outer Dia a | 3.3465 inch |
| g | 1-1/16 inch |
| r | 0.079 inch |
| B | 1.500 inch |
| n | 0.626 inch |
| Bearing No | UC206-18 |
| Housing No | C206 |
