SKU: UC.217

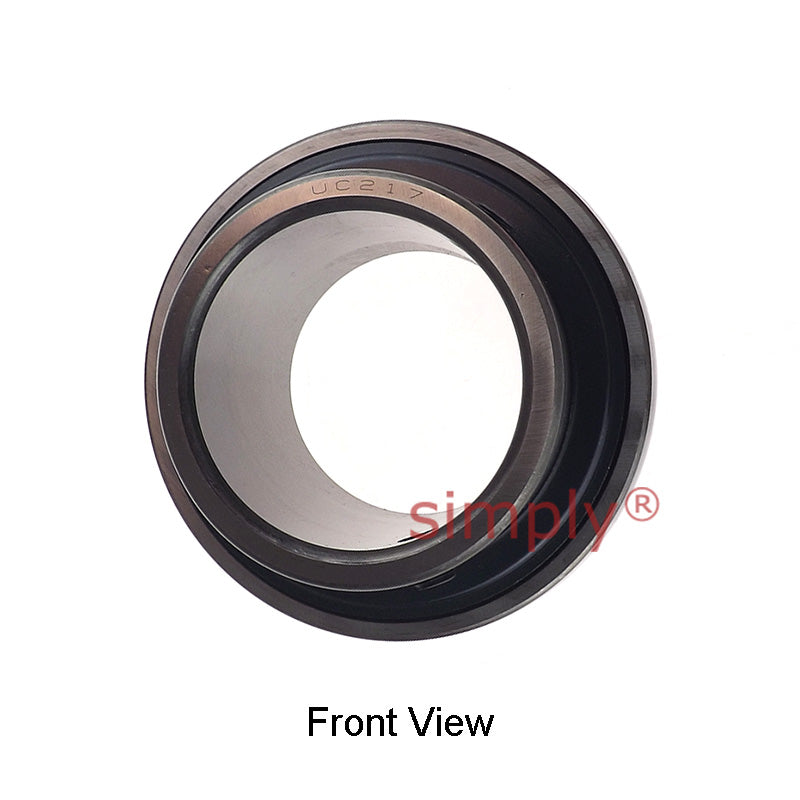

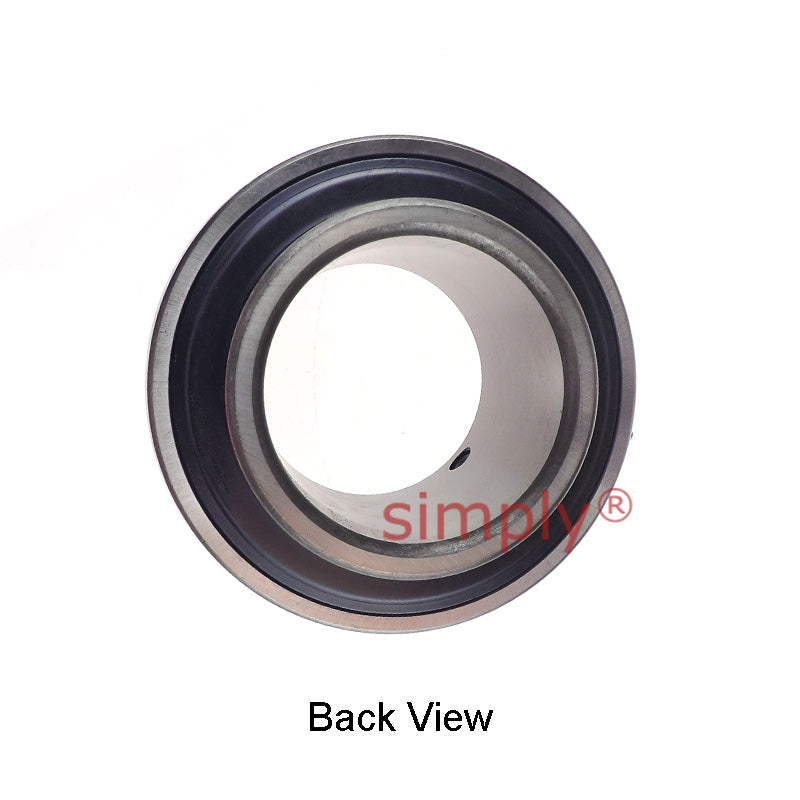

UC217 Metric Bearing Insert with 85mm Bore 150mm Outside Dia
UC217 Metric Bearing Insert with 85mm Bore 150mm Outside Dia
Regular price
€38,66
ex VAT
Regular price
Sale price
€38,66
ex VAT
In stock
Price Break
10+
€34,41
19+
€32,47
29+
€32,09
39+
€31,70
49+
€31,31
74+
€30,93
99+
€29,00
199+
€28,61
249+
€28,22
499+
€27,84
999+
€27,06
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 85mm |
|---|---|
| D | 150mm |
| Bi | 85mm |
| Be | 35mm |
| n | 34.1mm |
| m | 51.6mm |
| G | 14mm |
| Grub screw | M12x1.5 |
| Weight | 3.45 kg |
| Dynamic load | 6600 kgf |
| Static load | 5320 kgf |
