SKU: UC.215-48

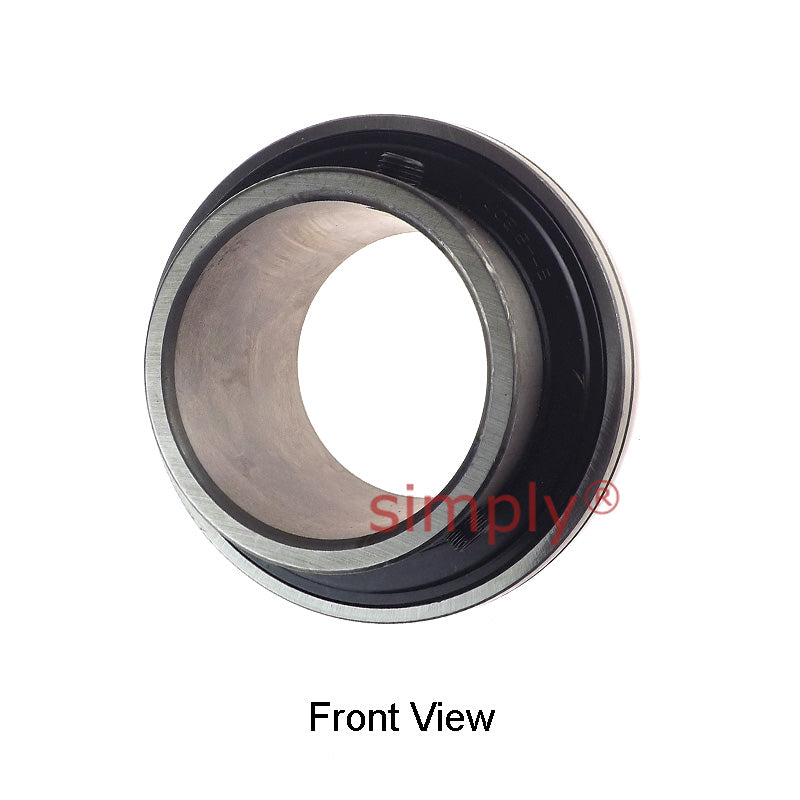

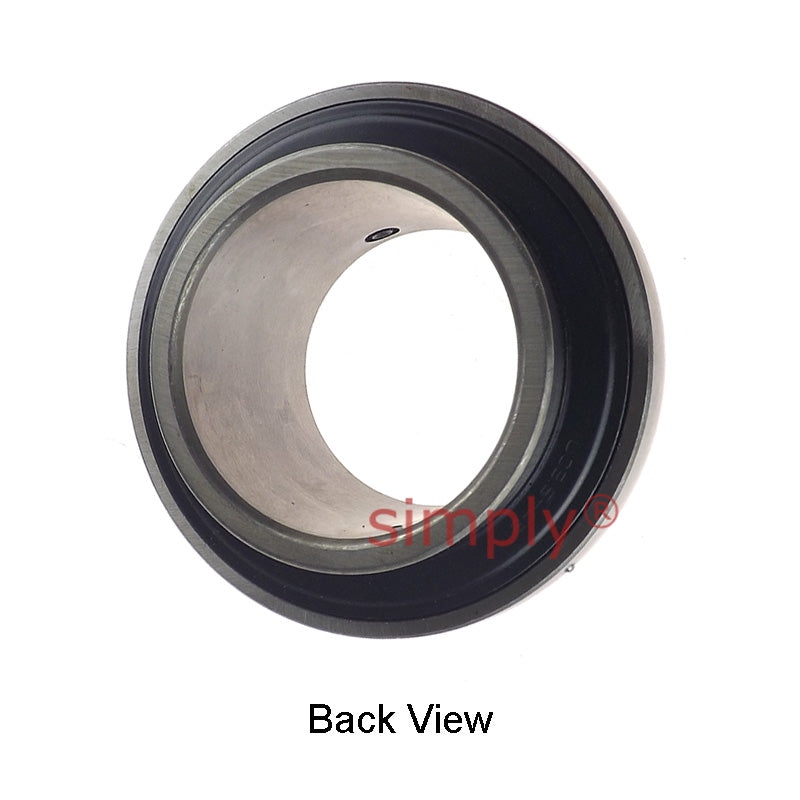

UC215-48 Imperial Bearing Insert with 3 inch Bore 130mm Outside Dia
UC215-48 Imperial Bearing Insert with 3 inch Bore 130mm Outside Dia
Regular price
€43,91
ex VAT
Regular price
Sale price
€43,91
ex VAT
In stock
Price Break
10+
€39,08
19+
€36,88
29+
€36,45
39+
€36,01
49+
€35,57
74+
€35,13
99+
€32,93
199+
€32,49
249+
€32,05
499+
€31,62
999+
€30,74
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Outside Diameter:
- 130mm
- Style:
- UC
Technical
Technical
| d | 3 inch |
|---|---|
| D | 130mm |
| Bi | 77.8mm |
| Be | 30mm |
| n | 33.3mm |
| m | 44.5mm |
| G | 12mm |
| Grub screw | 7/16"-20 UNF |
| Weight | 2.12 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
