SKU: UC.210-32

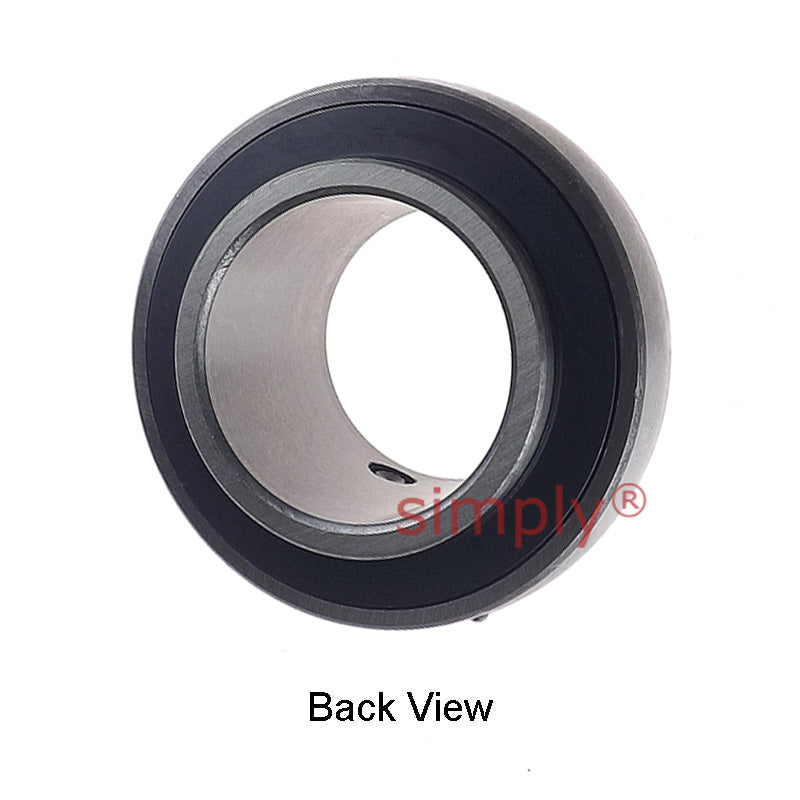

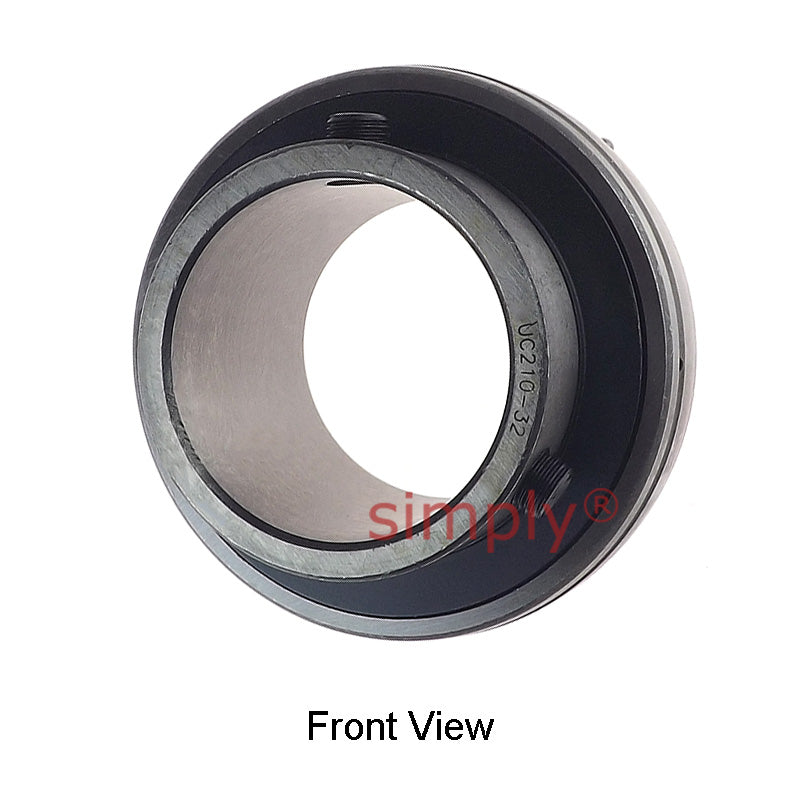

UC210-32 Imperial Bearing Insert with 2 inch Bore 90mm Outside Dia
UC210-32 Imperial Bearing Insert with 2 inch Bore 90mm Outside Dia
Regular price
€18,50
ex VAT
Regular price
Sale price
€18,50
ex VAT
Equivalent to: 1050-2G
In stock
Price Break
3+
€14,09
4+
€13,30
9+
€13,14
19+
€12,98
49+
€12,82
99+
€12,66
499+
€11,87
999+
€11,71
1999+
€11,56
2999+
€11,40
4999+
€11,08
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1050-2G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 90mm
- Style:
- UC
Technical
Technical
| d | 2 inch |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 24mm |
| n | 19mm |
| m | 32.6mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 0.82 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Rec max speed | 3400 rpm |
