SKU: UC.209-26

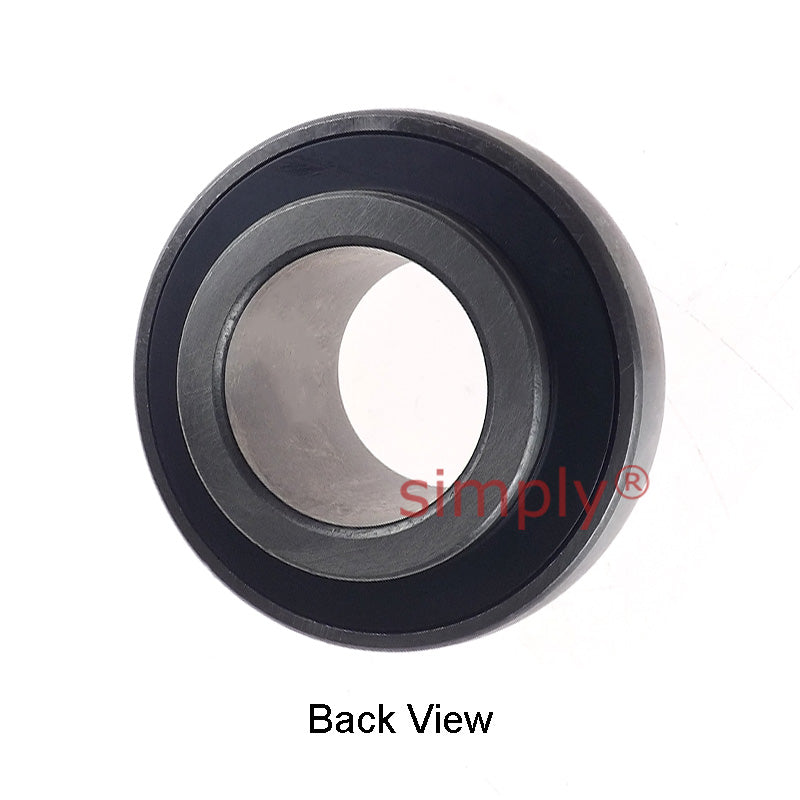

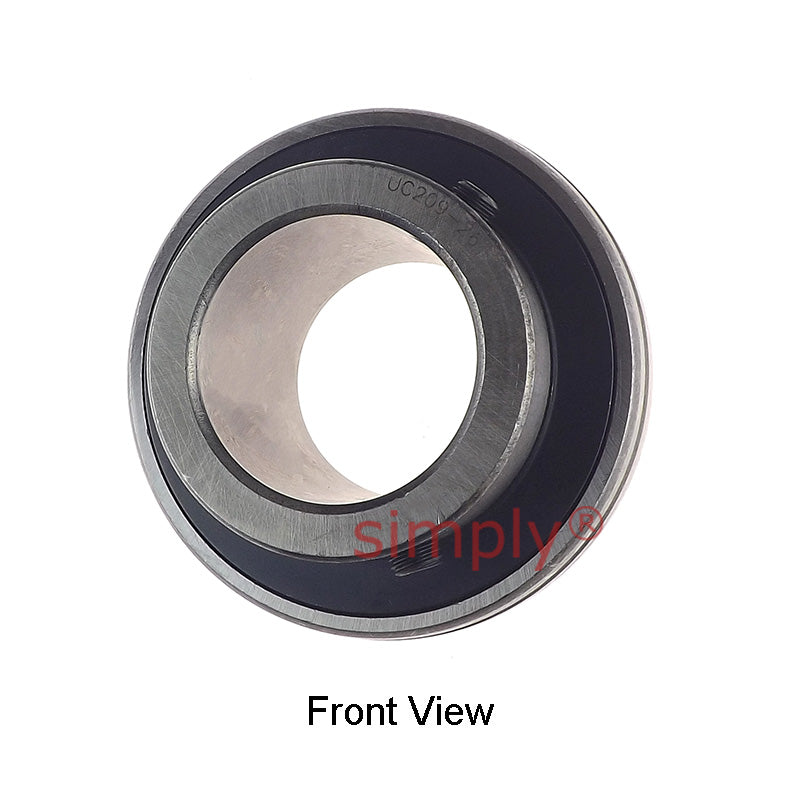

UC209-26 Imperial Bearing Insert with 1-5/8 inch Bore 85mm Outside Dia
UC209-26 Imperial Bearing Insert with 1-5/8 inch Bore 85mm Outside Dia
Regular price
€10,13
ex VAT
Regular price
Sale price
€10,13
ex VAT
Equivalent to: 1045-1-5/8G
In stock
Price Break
3+
€7,72
4+
€7,28
9+
€7,20
19+
€7,11
49+
€7,02
99+
€6,94
499+
€6,50
999+
€6,42
1999+
€6,33
2999+
€6,24
4999+
€6,07
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1045-1-5/8G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 85mm
- Style:
- UC
Technical
Technical
| d | 1-5/8 inch |
|---|---|
| D | 85mm |
| Bi | 49.2mm |
| Be | 22mm |
| n | 19mm |
| m | 30.2mm |
| G | 10mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.78 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
