SKU: UC.207-21

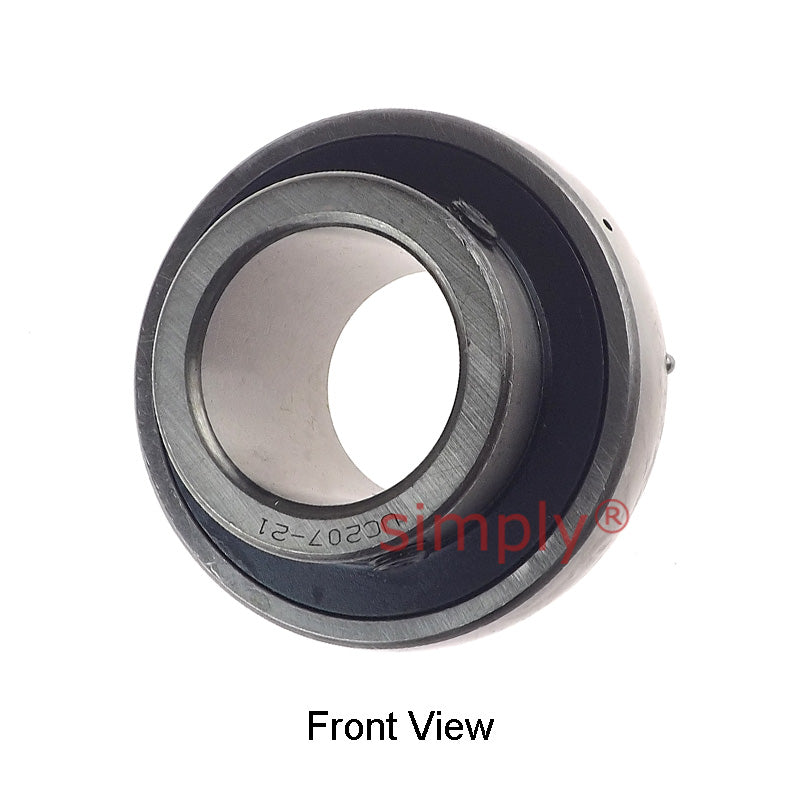

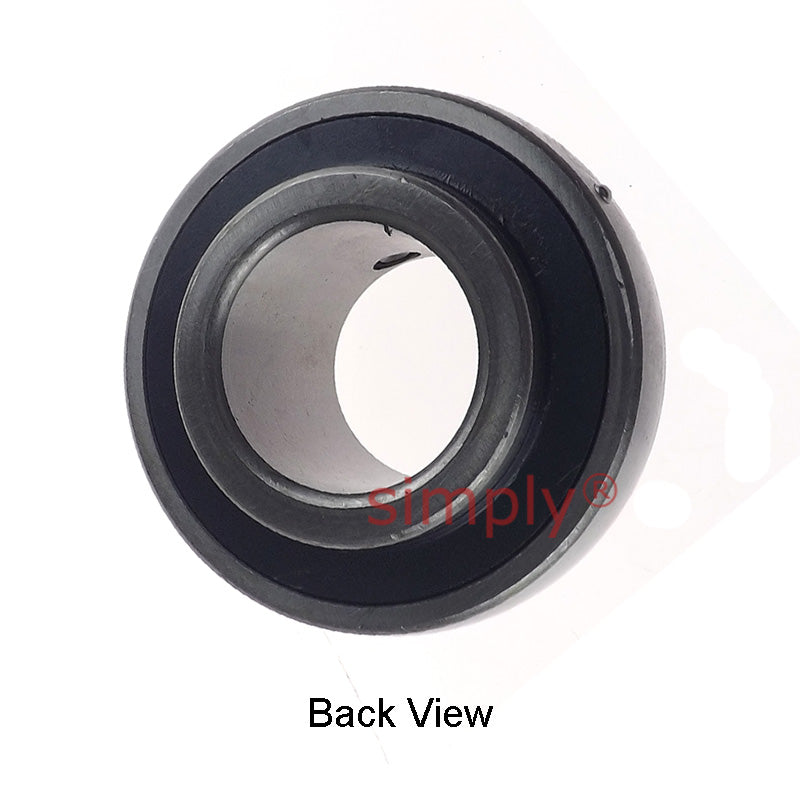

UC207-21 Imperial Bearing Insert with 1-5/16 inch Bore 72mm Outside Dia
UC207-21 Imperial Bearing Insert with 1-5/16 inch Bore 72mm Outside Dia
Regular price
€12,24
ex VAT
Regular price
Sale price
€12,24
ex VAT
Equivalent to: 1035-1-5/16G
In stock
Price Break
10+
€10,89
19+
€10,28
29+
€10,16
39+
€10,04
49+
€9,91
74+
€9,79
99+
€9,18
199+
€9,06
249+
€8,94
499+
€8,81
999+
€8,57
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1035-1-5/16G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Outside Diameter:
- 72mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 1-5/16 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| n | 17.5mm |
| m | 25.4mm |
| G | 6.5mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.51 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
