SKU: UC.201

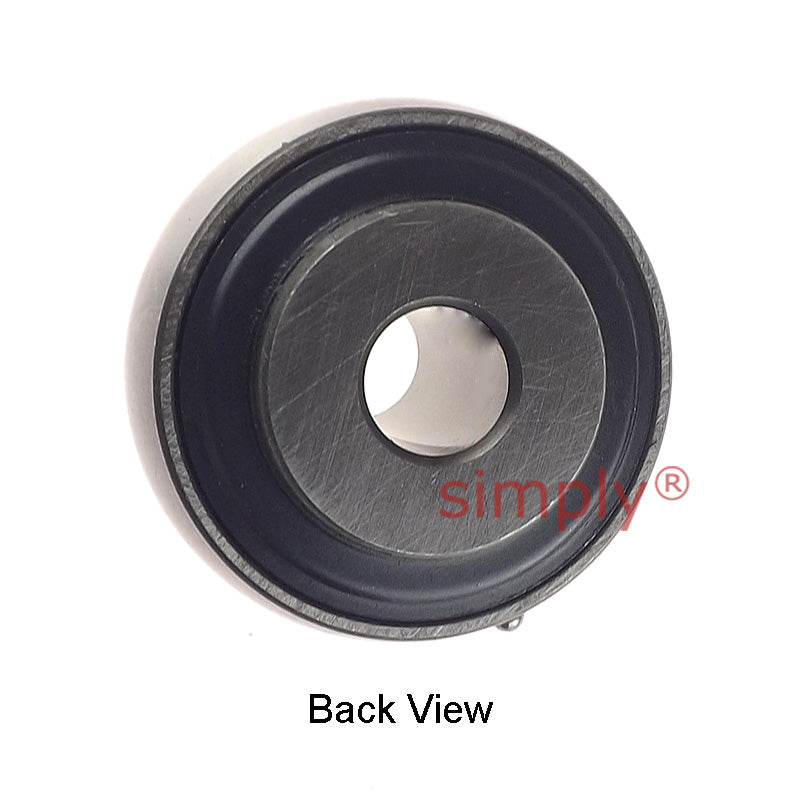

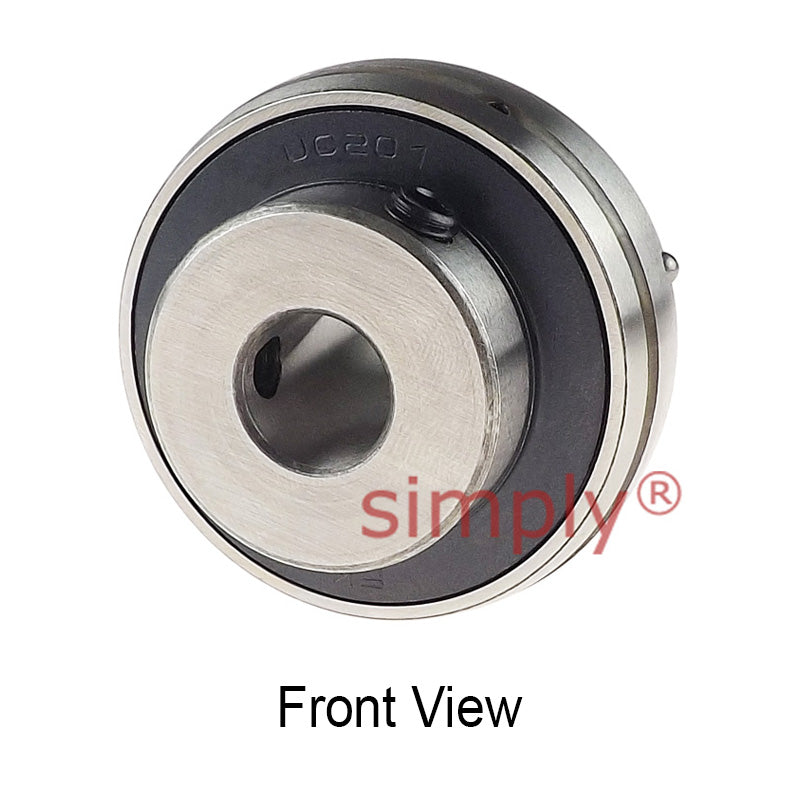

UC201 Metric Bearing Insert with 12mm Bore 47mm Outside Dia
UC201 Metric Bearing Insert with 12mm Bore 47mm Outside Dia
Regular price
€8,00
ex VAT
Regular price
Sale price
€8,00
ex VAT
In stock
Price Break
10+
€7,12
19+
€6,72
29+
€6,64
39+
€6,56
49+
€6,48
74+
€6,40
99+
€6,00
199+
€5,92
249+
€5,84
499+
€5,76
999+
€5,60
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 47mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 12mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | M6x1 |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
