SKU: TUJ20TF-SKF

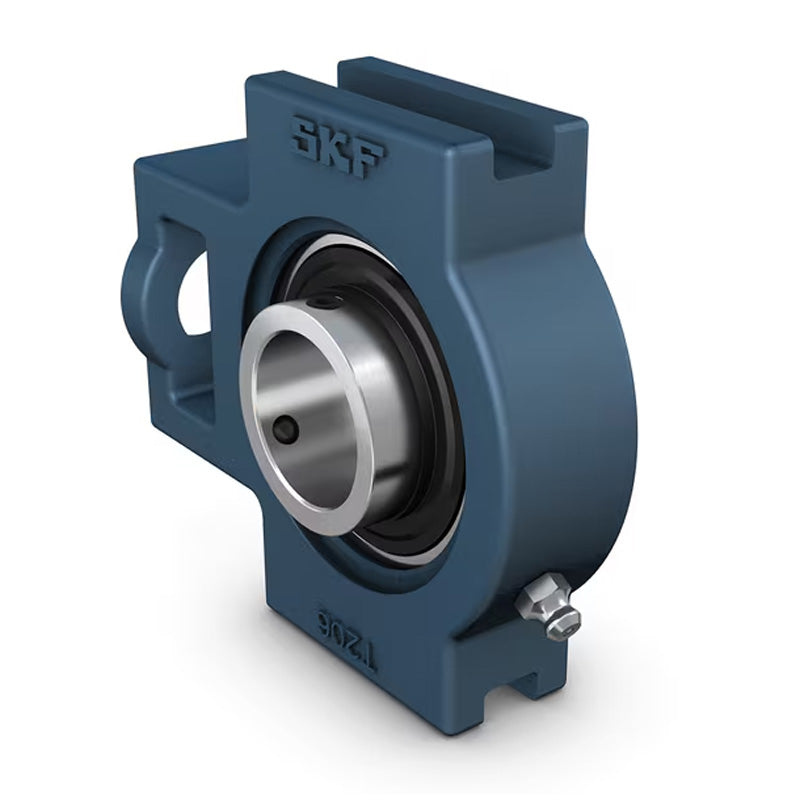

SKF TUJ20TF Grub Screw Type Take Up Unit 20mm Bore
SKF TUJ20TF Grub Screw Type Take Up Unit 20mm Bore
Regular price
€51,49
ex VAT
Regular price
Sale price
€51,49
ex VAT
In stock
Price Break
10+
€39,21
20+
€37,01
30+
€36,57
40+
€36,13
50+
€35,68
75+
€35,24
100+
€33,04
200+
€32,60
250+
€32,16
500+
€31,72
1000+
€30,84
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- TUJ
Technical
Technical
| d | 20mm |
|---|---|
| A | 34mm |
| A1 | 12mm |
| A2 | 25mm |
| B | 31mm |
| D1 | 19mm |
| H | 92mm |
| H1 | 76mm |
| H2 | 54mm |
| L | 97mm |
| L1 | 62mm |
| L2 | 10mm |
| L3 | 54mm |
| N | 32mm |
| N1 | 16mm |
| s1 | 18.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 8500 rpm |
| Weight | 0.76 kg |
