SKU: TU1.1/4TF-SKF

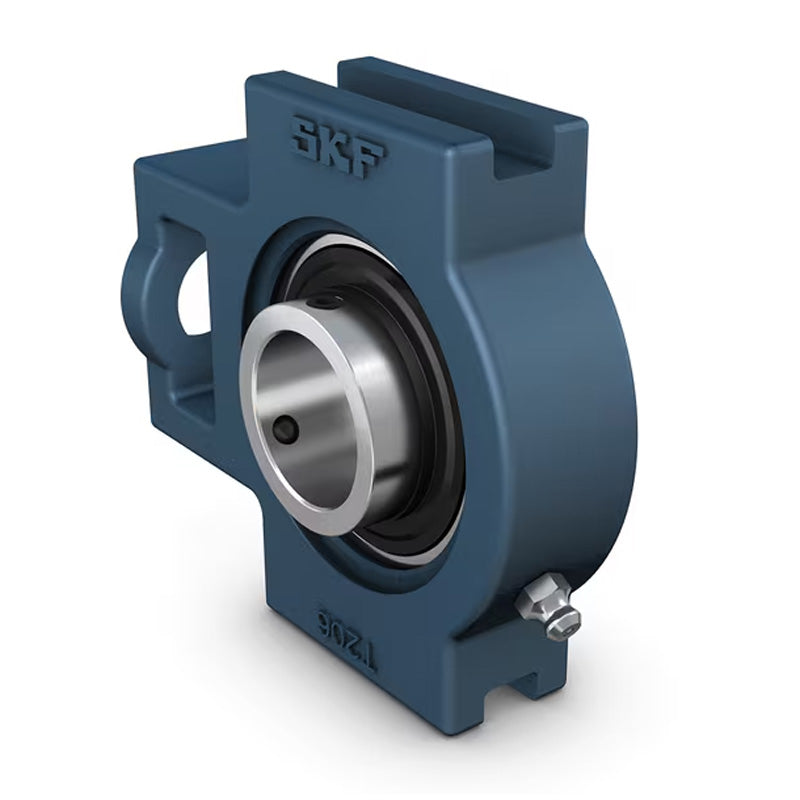

SKF TU1-1/4TF Grub Screw Type Take Up Unit 1-1/4 inch Bore
SKF TU1-1/4TF Grub Screw Type Take Up Unit 1-1/4 inch Bore
Regular price
€94,85
ex VAT
Regular price
Sale price
€94,85
ex VAT
In stock
Price Break
10+
€72,24
20+
€68,19
30+
€67,37
40+
€66,56
50+
€65,75
75+
€64,94
100+
€60,88
200+
€60,07
250+
€59,26
500+
€58,44
1000+
€56,82
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- TU
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| A | 37mm |
| A1 | 13.5mm |
| A2 | 30mm |
| B | 42.9mm |
| D1 | 22mm |
| H | 103mm |
| H1 | 89mm |
| H2 | 64mm |
| L | 129mm |
| L1 | 78mm |
| L2 | 12mm |
| L3 | 64mm |
| N | 38mm |
| N1 | 17mm |
| s1 | 25.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| A5 | 22mm |
| Weight | 1.45 kg |
