SKU: TMFT36-SKF
SKF TMFT36 Bearing Installation and Fitting Tool Kit
SKF TMFT36 Bearing Installation and Fitting Tool Kit
Regular price
€614,42
ex VAT
Regular price
Sale price
€614,42
ex VAT
In stock
Price Break
10+
€467,94
19+
€441,65
29+
€436,40
39+
€431,14
49+
€425,88
74+
€420,62
99+
€394,33
199+
€389,08
249+
€383,82
499+
€378,56
999+
€368,05
Share this product
Description
Description
|

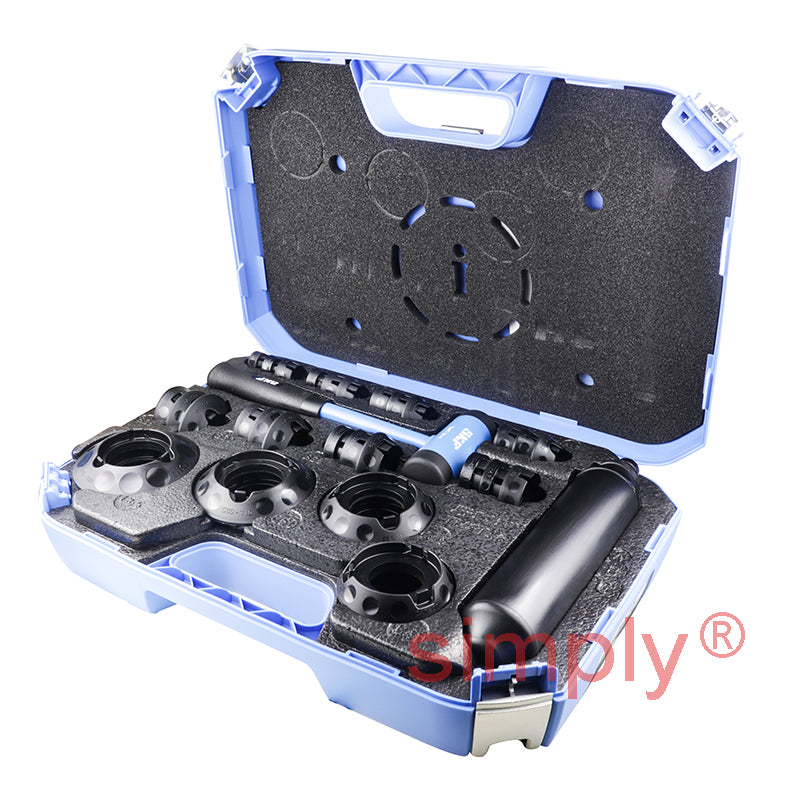

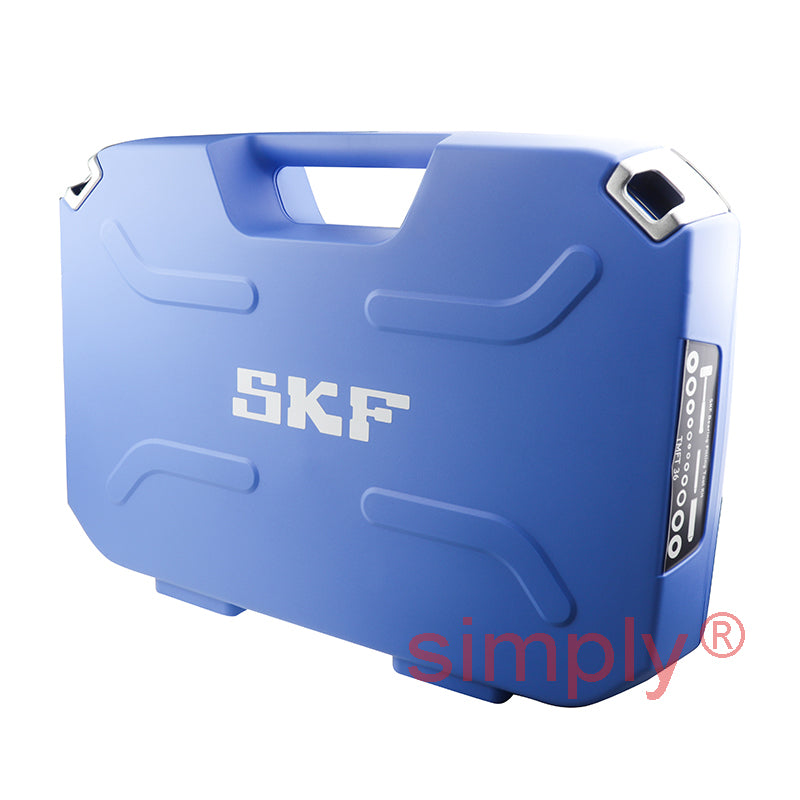

SKF TMFT36 Bearing Fitting Tool Kit: Its a well known fact that 16 percent of all bearing and oil seal failures could have been avoided by the use of the correct fitting equipment. The fitting tool TMFT 36 is designed for quick, precise and safe mounting of bearings with bore diameters from 10 to 55 mm (0.39 - 2.2 in) with outer diameter ranging from 26 to 120 mm (1.0 - 4.7 in). It can also be used to mount bushings, seal rings, belt pulleys etc. The fitting tool kit, TMFT 36, contains 36 impact rings, 3 impact sleeves and a dead-blow hammer packed in a carrying case. The impact rings are made of high-impact modified polyamide. The impact sleeves are made of glass fibre reinforced, high-impact modified polyamide, which is super-tough, strong and lightweight. The dead-blow hammer has nylon faces and is steel-shot loaded for maximum impact. The welded-on steel handle, with comfortable rubber grip for good handling, absorbs shock and vibration. Each impact ring is clearly marked with the ring's designation and shiny dimples indicating the ring's size: 3 dimples for size C, 2 for size B and 1 for size A. The impact ring is fitted on the sleeve by a click connection, which provides stability when the tool is handled and can withstand higher forces (e.g. from a press). The ring design allows the use of a press instead of the sleeve and hammer. All rings are placed in upright position in the carrying case, allowing easy selection. The sleeve heads are designed for maximum effective force transmission by having a small impact area. The curved design of the sleeve's head diverts the blow from the user's hand in case of a miss-hit, minimizing the risk of injury. A selection chart is incorporated in the carrying case's lid. Language-free instruction for use booklet is included. |
- Brand / Quality:
- SKF - High Quality
