SKU: TA.4025.Z-EU

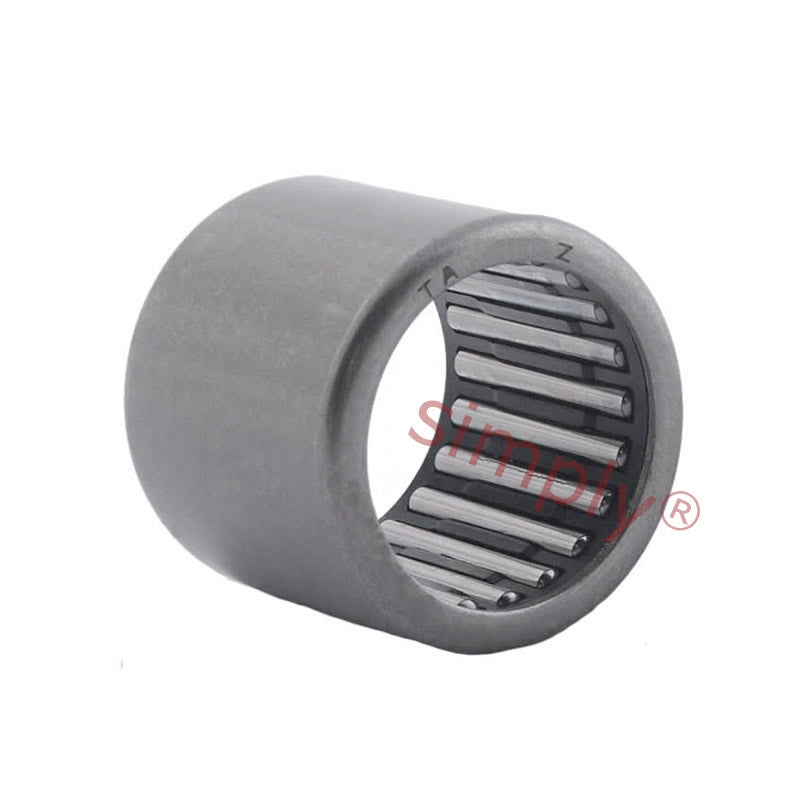

Premier Budget TA4025Z Needle Roller Bearing Open End Type 40x50x25mm
Premier Budget TA4025Z Needle Roller Bearing Open End Type 40x50x25mm
Regular price
€11,63
ex VAT
Regular price
Sale price
€11,63
ex VAT
Equivalent to: HMK4025
In stock
Price Break
10+
€8,85
19+
€8,36
29+
€8,26
39+
€8,16
49+
€8,06
74+
€7,96
99+
€7,46
199+
€7,36
249+
€7,26
499+
€7,16
999+
€6,96
Share this product
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK4025
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 50mm
- Width:
- 25mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 50mm |
| C | 25mm |
| Dynamic load | 36600N |
| Static load | 66200N |
| Inner race | IRT3525 |
| Weight | 69.5g |
