SKU: T7012CTDULP3-RHP

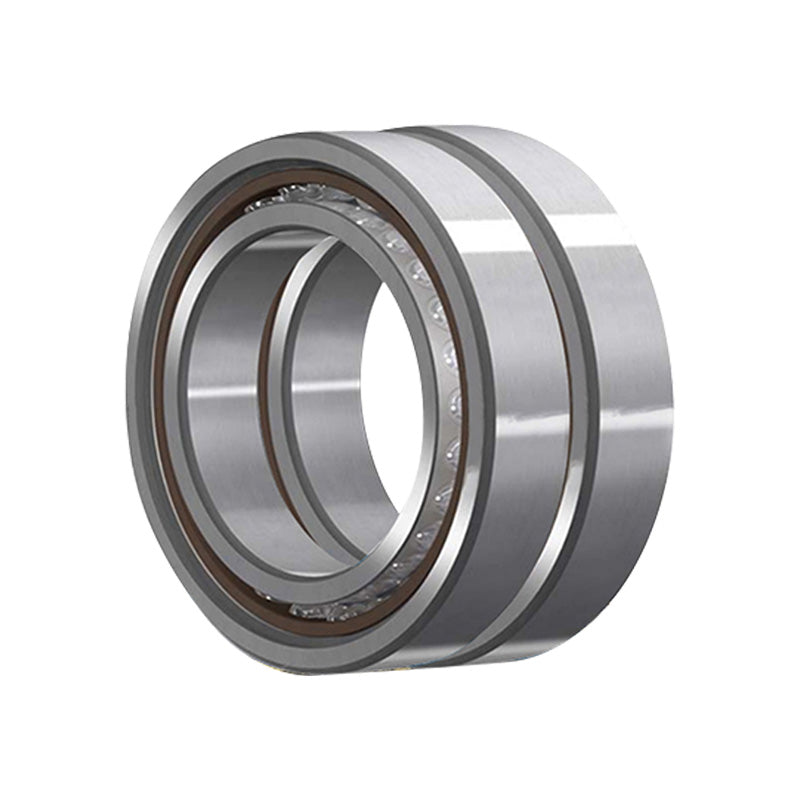

RHP T7012CTDULP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 2)

RHP T7012CTDULP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 2)
Regular price €532,67 ex VAT
Regular price Sale price €532,67 ex VAT
Sale Sold out

In stock

Price Break
3+ €405,68
5+ €382,89
10+ €378,33
25+ €373,77
49+ €369,21
74+ €364,65
99+ €341,86
199+ €337,31
249+ €332,75
499+ €328,19
999+ €319,07
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 37Kn
C<sub>or</sub> 30.5kN
Axial load Kn 19.9 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.7
Effective diameter 19.4mm
Max speed in grease 14900 rpm
Max speed in oil 22600 rpm
--- Fitting dimensions
d<sub>a min</sub> 67mm
D<sub>a max</sub> 88mm
D<sub>b max</sub> 90mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 0.81kg
