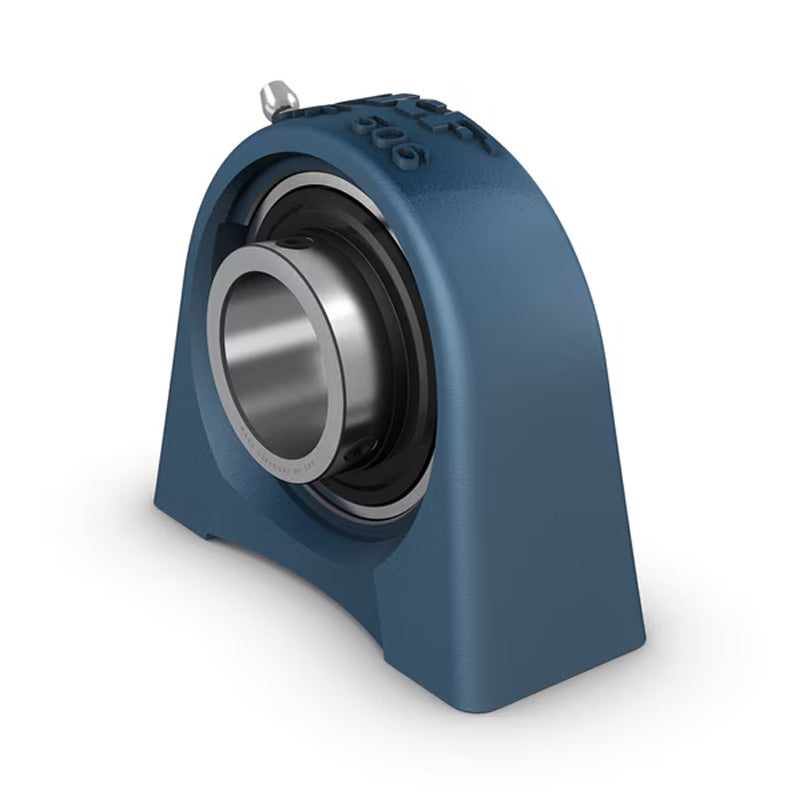

SKF SYFJ45TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 45mm
SKF SYFJ45TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 45mm
Regular price
€76,33
ex VAT
Regular price
Sale price
€76,33
ex VAT
In stock
Price Break
10+
€67,93
19+
€64,12
29+
€63,35
39+
€62,59
49+
€61,83
74+
€61,06
99+
€57,25
199+
€56,48
249+
€55,72
499+
€54,96
999+
€53,43
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- SYFJ
- Bolt Hole Centres:
- 90mm
Technical
Technical
| d | 45mm |
|---|---|
| A | 54mm |
| A1 | 33.5mm |
| B | 49.2mm |
| H | 109mm |
| H1 | 54.2mm |
| H2 | 12mm |
| J | 90mm |
| L | 120mm |
| G | M14 |
| G1 | 25mm |
| s1 | 30.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 1.85 kg |
| Housing | SYFJ509 |
| Insert | YAR209-2F |
