SKU: SY45TF/VA201-SKF

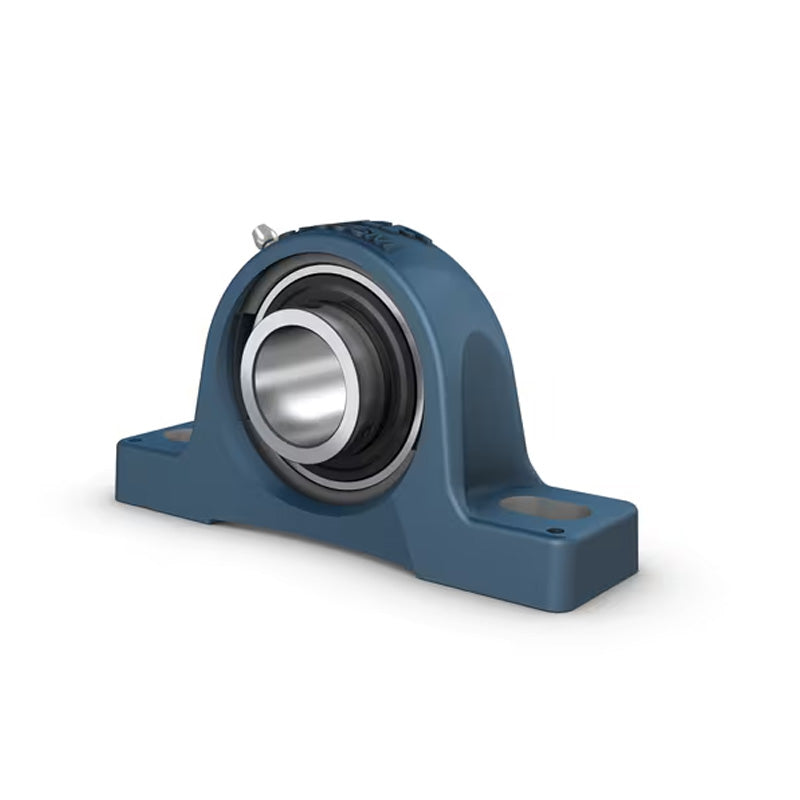

SKF SY45TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 45mm
SKF SY45TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 45mm
Regular price
€345,60
ex VAT
Regular price
Sale price
€345,60
ex VAT
In stock
Price Break
10+
€263,21
19+
€248,42
29+
€245,46
39+
€242,51
49+
€239,55
74+
€236,59
99+
€221,81
199+
€218,85
249+
€215,89
499+
€212,93
999+
€207,02
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 45mm |
|---|---|
| A | 48mm |
| B | 49.2mm |
| H | 107mm |
| H1 | 54mm |
| H2 | 20.6mm |
| J | 143.5mm |
| L | 187mm |
| N | 22.5mm |
| N1 | 14mm |
| G | 12mm |
| S1 | 30.2mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 2.3 kg |
