SKU: SY25TF/VA201-SKF

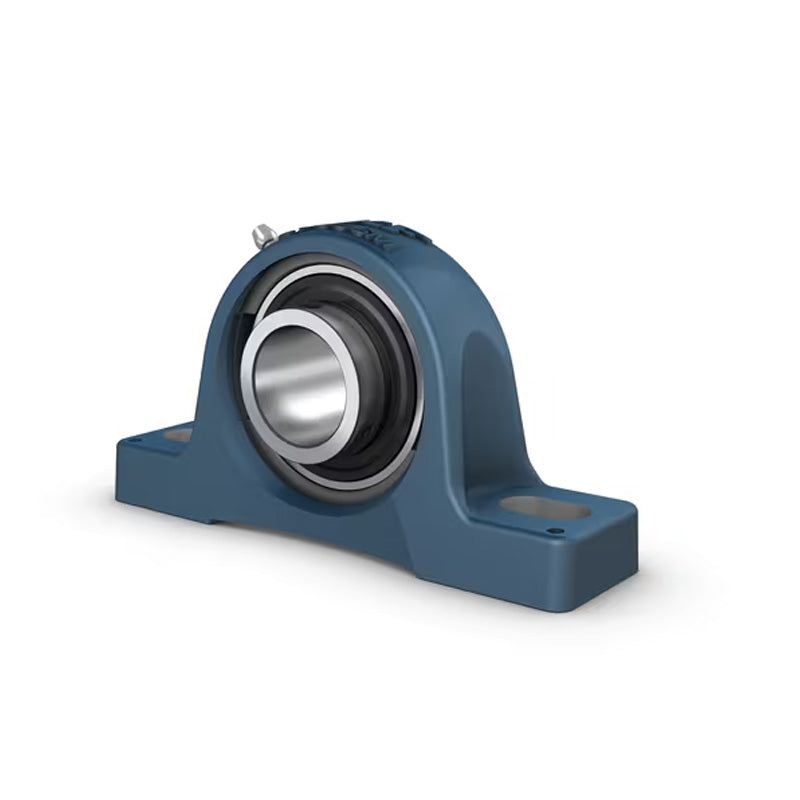

SKF SY25TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 25mm
SKF SY25TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 25mm
Regular price
€172,66
ex VAT
Regular price
Sale price
€172,66
ex VAT
In stock
Price Break
10+
€153,67
19+
€145,03
29+
€143,31
39+
€141,58
49+
€139,85
74+
€138,13
99+
€129,50
199+
€127,77
249+
€126,04
499+
€124,32
999+
€120,86
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 25mm |
|---|---|
| A | 36mm |
| B | 34.1mm |
| H | 70mm |
| H1 | 36.5mm |
| H2 | 16mm |
| J | 102mm |
| L | 130mm |
| N | 19.5mm |
| N1 | 11.5mm |
| G | 10mm |
| S1 | 19.8mm |
| Dynamic load C | 14 kN |
| Static load Co | 7.8 kN |
| Weight | 0.73 kg |
