SKU: SY2.7/16TF/VA228-SKF

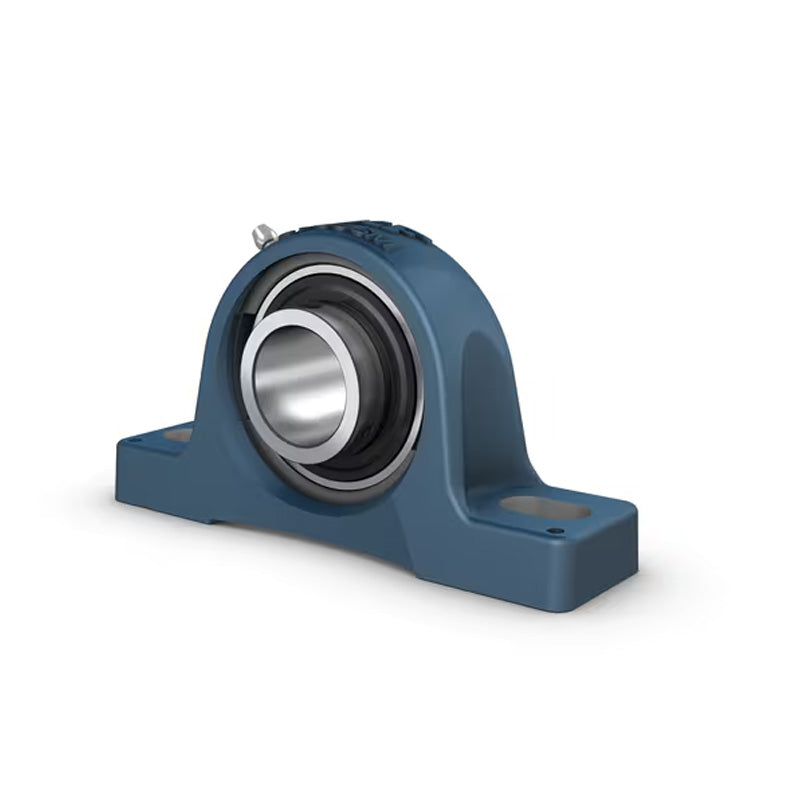

SKF SY27/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 2-7/16 inch
SKF SY27/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 2-7/16 inch
Regular price
€471,19
ex VAT
Regular price
Sale price
€471,19
ex VAT
In stock
Price Break
10+
€358,85
19+
€338,69
29+
€334,66
39+
€330,63
49+
€326,60
74+
€322,56
99+
€302,40
199+
€298,37
249+
€294,34
499+
€290,31
999+
€282,24
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| A | 60mm |
| B | 65.11mm |
| H | 139.7mm |
| H1 | 69.9mm |
| H2 | 26mm |
| J | 190.5mm |
| L | 240mm |
| N | 29mm |
| N1 | 18mm |
| G | 16mm |
| S1 | 39.7mm |
| Dynamic load C | 52.7 kN |
| Static load Co | 36 kN |
| Weight | 4.45 kg |
