SKU: SY1.TF/VA228-SKF

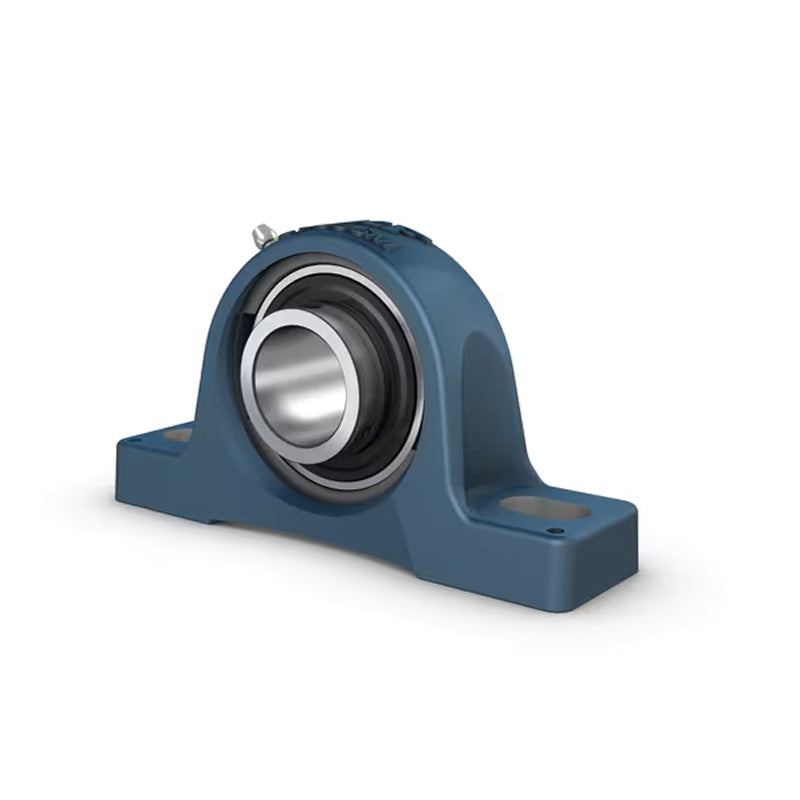

SKF SY1TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1 inch

Name: SKF SY1TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1 inch
Brand: SKF
SKU: SY1.TF/VA228-SKF
Price: 292.05 EUR
Availability: InStock

€292,05 ex VAT

Sale Sold out

In stock

Price Break

10+ €222,43

19+ €209,93

29+ €207,43

39+ €204,93

49+ €202,43

74+ €199,94

99+ €187,44

199+ €184,94

249+ €182,44

499+ €179,94

999+ €174,94

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 25.4mm = 1 inch
Temperature Range:: High Temp

Technical

d	1 inch
A	36mm
B	34mm
H	17mm
H1	36.5mm
H2	16mm
J	102mm
L	130mm
N	19.5mm
N1	11.5mm
G	10mm
S1	19.8mm
Dynamic load C	14 kN
Static load Co	7.8 kN
Weight	0.75 kg
