SKU: SY1.TF/VA201-SKF

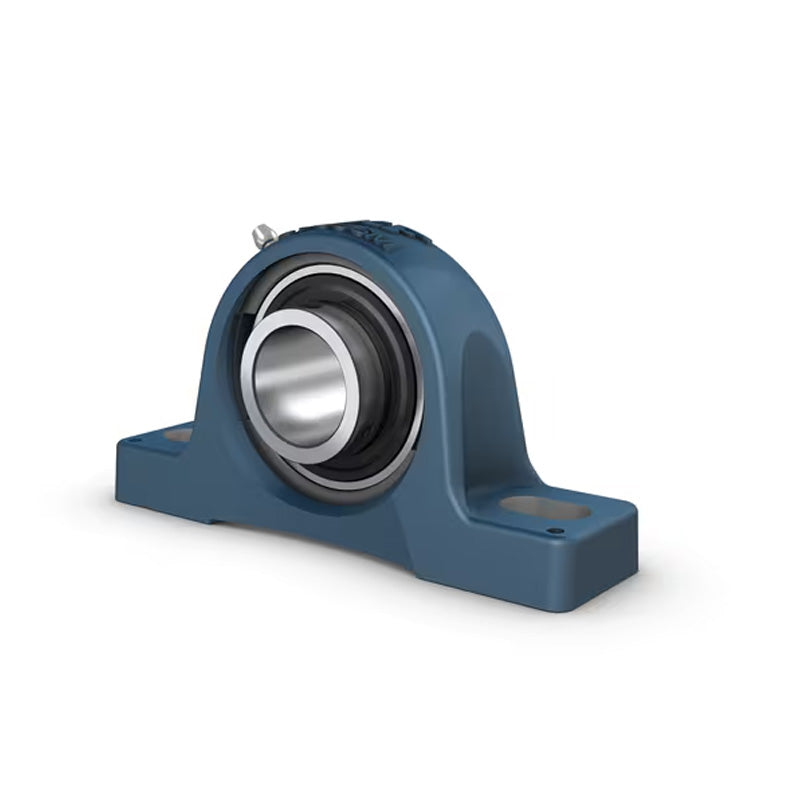

SKF SY1TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1 inch
SKF SY1TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1 inch
Regular price
€178,52
ex VAT
Regular price
Sale price
€178,52
ex VAT
In stock
Price Break
10+
€158,88
19+
€149,96
29+
€148,17
39+
€146,39
49+
€144,60
74+
€142,82
99+
€133,89
199+
€132,10
249+
€130,32
499+
€128,53
999+
€124,96
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1 inch |
|---|---|
| A | 36mm |
| B | 34mm |
| H | 17mm |
| H1 | 36.5mm |
| H2 | 16mm |
| J | 102mm |
| L | 130mm |
| N | 19.5mm |
| N1 | 11.5mm |
| G | 10mm |
| S1 | 19.8mm |
| Dynamic load C | 14 kN |
| Static load Co | 7.8 kN |
| Weight | 0.75 kg |
