SKU: SY1.7/16TF/VA228-SKF

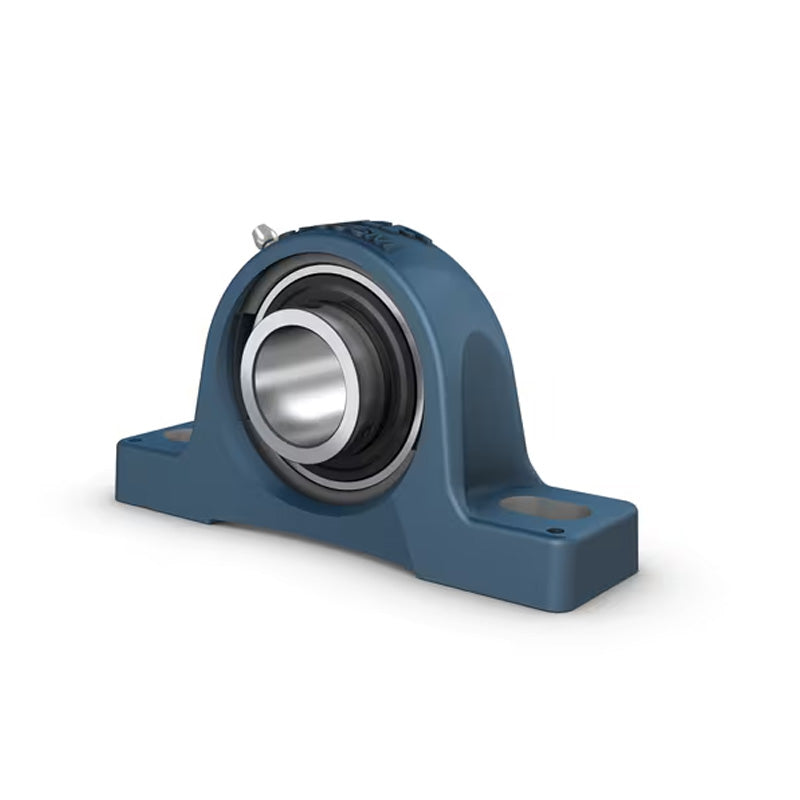

SKF SY17/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1-7/16 inch
SKF SY17/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1-7/16 inch
Regular price
€418,22
ex VAT
Regular price
Sale price
€418,22
ex VAT
In stock
Price Break
10+
€318,51
19+
€300,62
29+
€297,04
39+
€293,46
49+
€289,88
74+
€286,30
99+
€268,41
199+
€264,83
249+
€261,25
499+
€257,67
999+
€250,51
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| A | 45mm |
| B | 43.9mm |
| H | 93mm |
| H1 | 47.6mm |
| H2 | 19mm |
| J | 126mm |
| L | 160mm |
| N | 21mm |
| N1 | 14mm |
| G | 12mm |
| S1 | 25.4mm |
| Dynamic load C | 25.5 kN |
| Static load Co | 15.3 kN |
| Weight | 1.45 kg |
