SKU: SY1.3/16TF/VA228-SKF

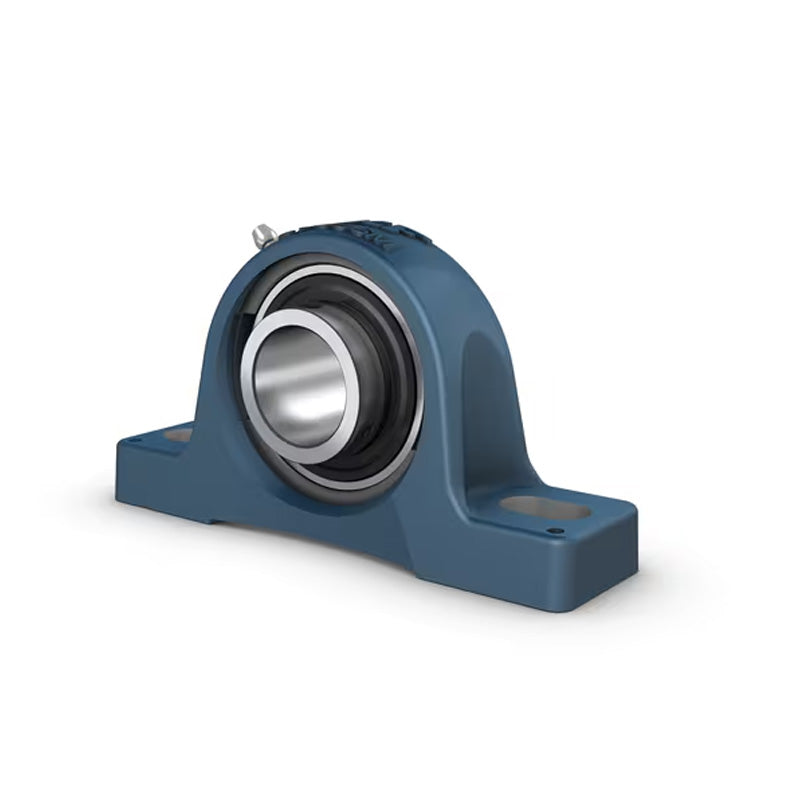

SKF SY13/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1-3/16 inch
SKF SY13/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1-3/16 inch
Regular price
€269,98
ex VAT
Regular price
Sale price
€269,98
ex VAT
In stock
Price Break
10+
€240,28
19+
€226,78
29+
€224,08
39+
€221,38
49+
€218,68
74+
€215,98
99+
€202,49
199+
€199,79
249+
€197,09
499+
€194,39
999+
€188,99
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| A | 40mm |
| B | 38.1mm |
| H | 82mm |
| H1 | 42.9mm |
| H2 | 17mm |
| J | 117.5mm |
| L | 152mm |
| N | 23.5mm |
| N1 | 14mm |
| G | 12mm |
| S1 | 22.2mm |
| Dynamic load C | 19.5 kN |
| Static load Co | 11.2 kN |
| Weight | 1.13 kg |
