• SW68 Snap Ring to Suit 68mm Shaft
1 1

SKU: SW68-M2400

SW68 Snap Ring to Suit 68mm Shaft

SW68 Snap Ring to Suit 68mm Shaft
€1,67 ex VAT
€1,67 ex VAT
Sale Sold out

Equivalent to: DIN5417 DIN 5417 CFS68 CFS-68 2400-68 SW68 SW-68 M2400-68

In stock

Price Break
5+ €1,00
10+ €0,86
20+ €0,79
50+ €0,72
100+ €0,57
500+ €0,50
1000+ €0,43
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52


Equivalent: DIN5417 DIN 5417 CFS68 CFS-68 2400-68 SW68 SW-68 M2400-68
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
65.4mm
Shaft Size:
68mm

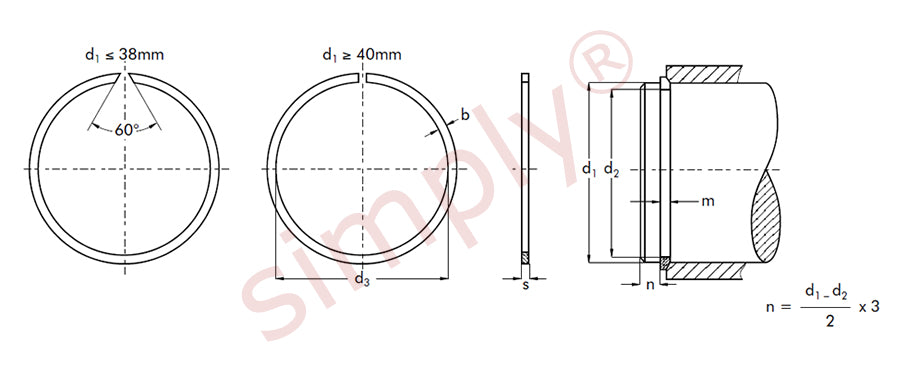

Technical
d1 68mm
s 2mm (Tolerance -0.1)
b 2.8mm (Tolerance -0.1)
d3 max. 65.4mm
d2 66.2mm (Tolerance - 0.19)
m min. 2.2mm
FN 31.7 kN
FR 39.6 kN
n det x1000 3 rpm
