• SW45 Snap Ring to Suit 45mm Shaft
1 1

SKU: SW45-M2400

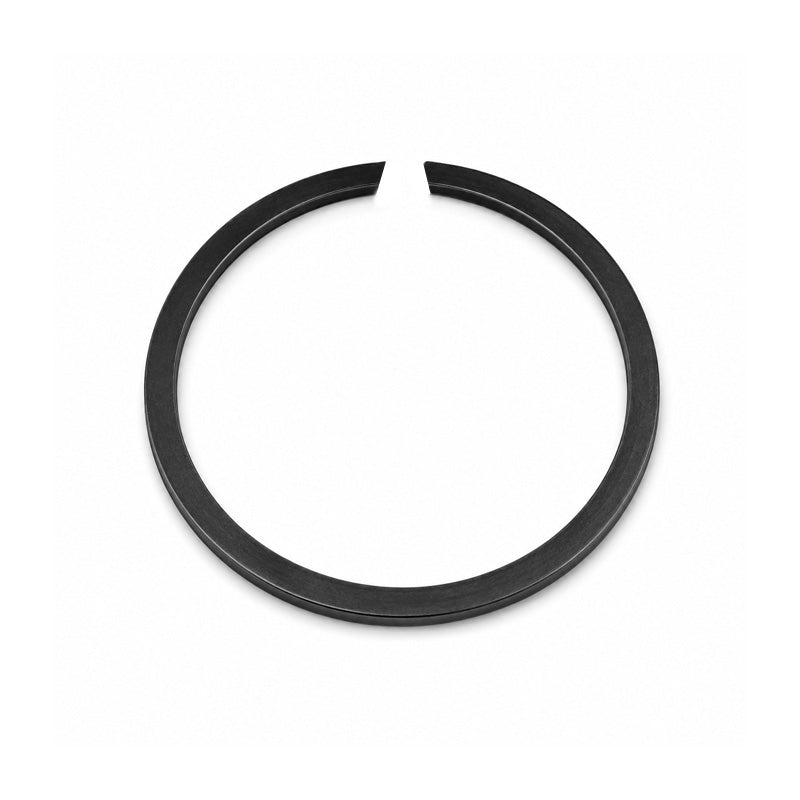

SW45 Snap Ring to Suit 45mm Shaft

SW45 Snap Ring to Suit 45mm Shaft
€0,99 ex VAT
€0,99 ex VAT
Sale Sold out

Equivalent to: DIN5417 DIN 5417 CFS45 CFS-45 2400-45 SW45 SW-45 M2400-45

In stock

Price Break
10+ €0,47
20+ €0,36
50+ €0,26
100+ €0,21
500+ €0,17
1000+ €0,13
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52


Equivalent: DIN5417 DIN 5417 CFS45 CFS-45 2400-45 SW45 SW-45 M2400-45
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
42.8mm
Shaft Size:
45mm
Technical
d1 45mm
s 1.5mm (Tolerance -0.1)
b 2.3mm (Tolerance -0.1)
d3 max. 42.8mm
d2 43.5mm (Tolerance - 0.16)
m min. 1.6mm
FN 17.3 kN
FR 20.6 kN
n det x1000 6 rpm
