• SW25 Snap Ring to Suit 25mm Shaft
1 1

SKU: SW25-M2400

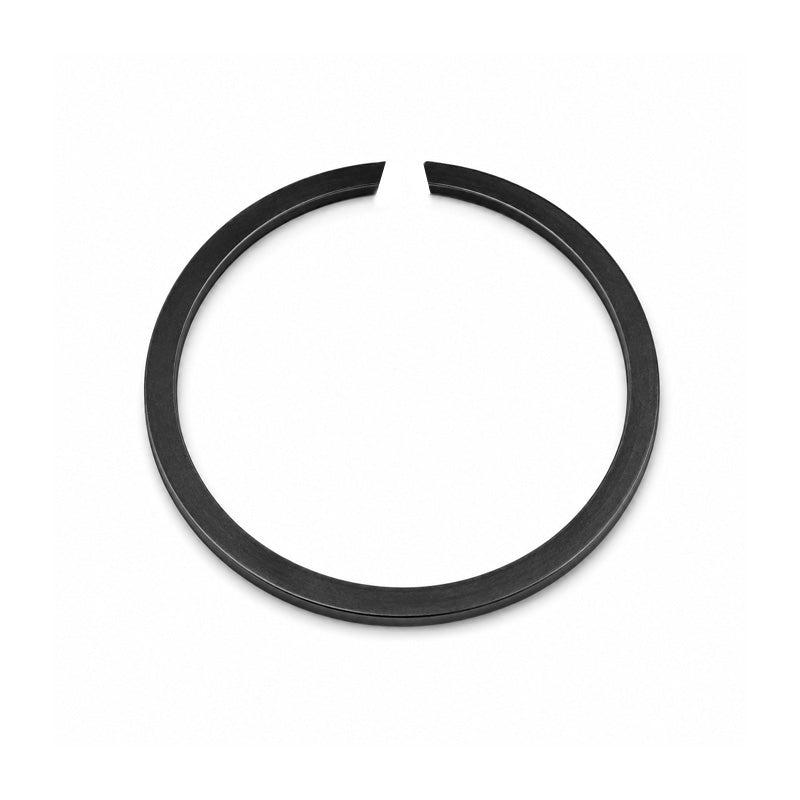

SW25 Snap Ring to Suit 25mm Shaft

SW25 Snap Ring to Suit 25mm Shaft
€0,99 ex VAT
€0,99 ex VAT
Sale Sold out

Equivalent to: DIN5417 DIN 5417 CFS25 CFS-25 2400-25 SW25 SW-25 M2400-25

In stock

Price Break
10+ €0,43
20+ €0,29
50+ €0,18
100+ €0,15
500+ €0,09
1000+ €0,08
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52


Equivalent: DIN5417 DIN 5417 CFS25 CFS-25 2400-25 SW25 SW-25 M2400-25
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
23.5mm
Shaft Size:
25mm
Technical
d1 25mm
s 1.2mm (Tolerance -0.1)
b 1.75mm (Tolerance -0.1)
d3 max. 23.5mm
d2 24mm (Tolerance - 0.13)
m min. 1.3mm
FN 6.4 kN
FR 12.8 kN
n det x1000 16 rpm
