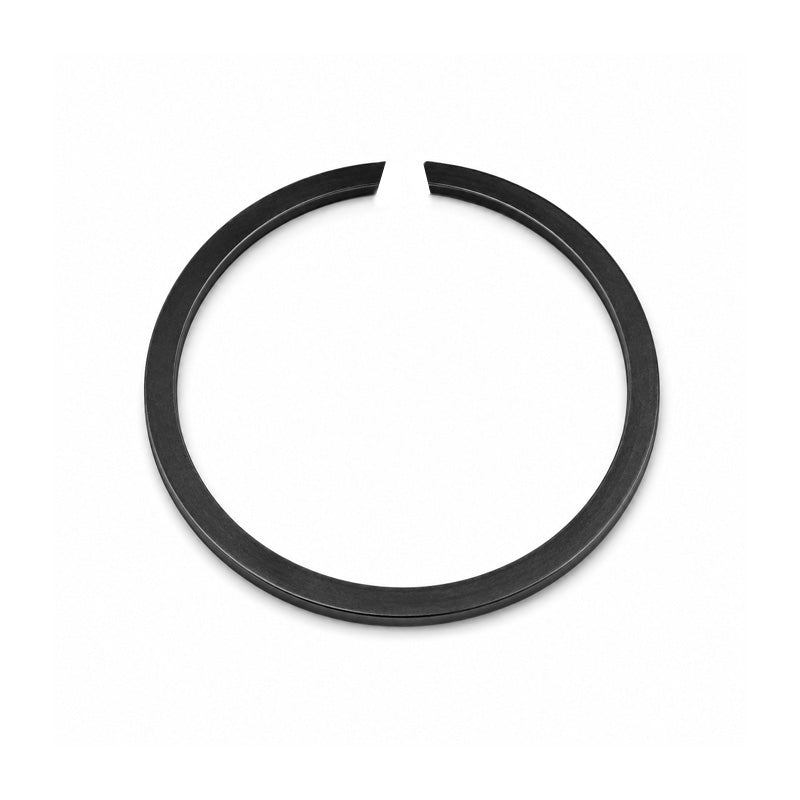

• SW21 Snap Ring to Suit 21mm Shaft
1 1

SKU: SW21-M2400

SW21 Snap Ring to Suit 21mm Shaft

SW21 Snap Ring to Suit 21mm Shaft
€0,99 ex VAT
€0,99 ex VAT
Sale Sold out

Equivalent to: DIN5417 DIN 5417 CFS21 CFS-21 2400-21 SW21 SW-21 M2400-21

In stock

Price Break
10+ €0,43
20+ €0,29
50+ €0,18
100+ €0,15
500+ €0,09
1000+ €0,08
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52


Equivalent: DIN5417 DIN 5417 CFS21 CFS-21 2400-21 SW21 SW-21 M2400-21
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
19.7mm
Shaft Size:
21mm
Technical
d1 21mm
s 1.2mm (Tolerance -0.1)
b 1.75mm (Tolerance -0.1)
d3 max. 19.7mm
d2 20.2mm (Tolerance - 0.13)
m min. 1.3mm
FN 4.3 kN
FR 14.6 kN
n det x1000 23 rpm
