• SUCTPL207 Metric Thermo Plastic Take Up Unit Housing with 35mm Bore Stainless Insert
1 1

SKU: SUCT.PL.207

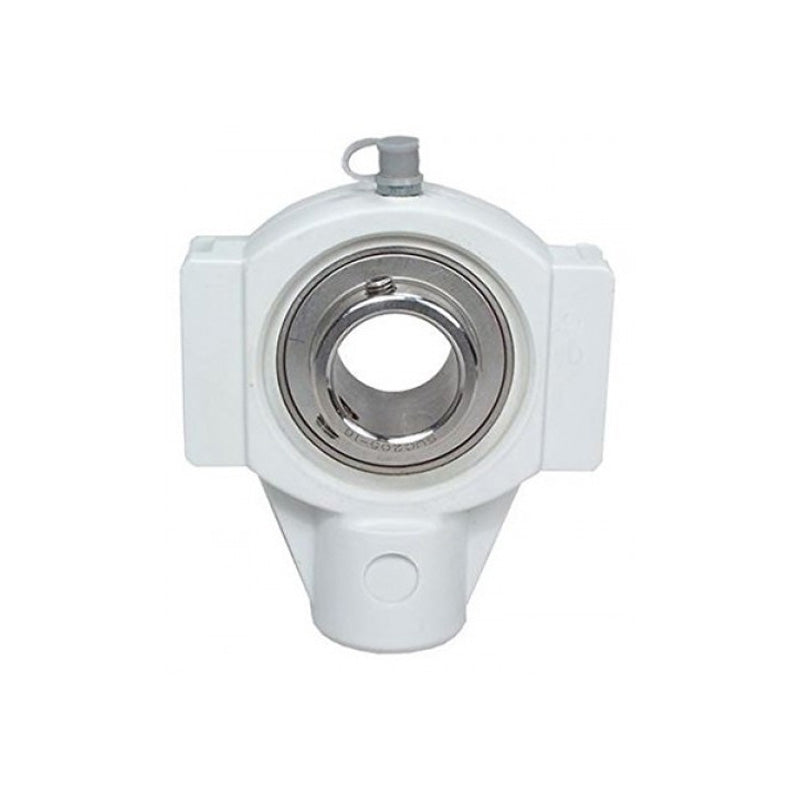

SUCTPL207 Metric Thermo Plastic Take Up Unit Housing with 35mm Bore Stainless Insert

SUCTPL207 Metric Thermo Plastic Take Up Unit Housing with 35mm Bore Stainless Insert
€41,61 ex VAT
€41,61 ex VAT
Sale Sold out

Equivalent to: PST35CR

In stock

Price Break
3+ €31,69
4+ €29,91
9+ €29,56
19+ €29,20
49+ €28,84
99+ €28,49
499+ €26,71
999+ €26,35
1999+ €26,00
2999+ €25,64
4999+ €24,93
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary.

Equivalent: PST35CR
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
35mm
Temperature Range:
-35 to 102 deg C
Style:
SUCT
Technical
d 35mm
a 125mm
c 34.5mm
d 12mm
h 76mm
m 89mm
s M16
t 40mm
v 102mm
w 63mm
B 42.9mm
n 17.5mm
Weight 1.3 kg
Dynamic load 2010 kgf
Static load 1390 kgf
Temperature Range -35 to 102 deg C
Rec max speed 4500 rpm
